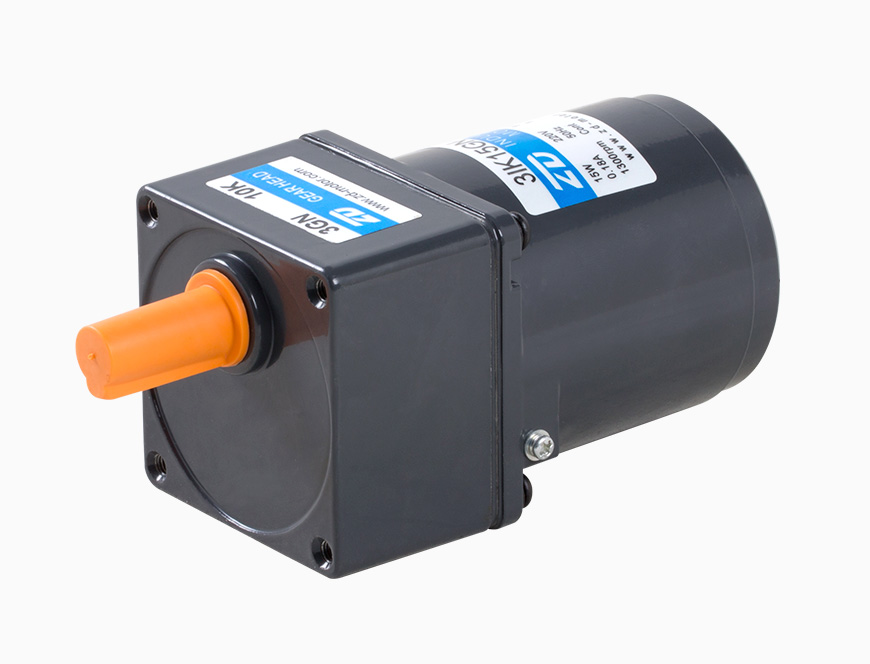

15W Induction AC Motor/ Gear Motor

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

Model•Type Lead Wire Type		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Ratad Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
3IK15GN-A	3IK15A-A	15	1ph 100	50	0.35	90	125	1200	6.0
				60	0.33	85	105	1450
3IK15GN-E	3IK15A-E	15	1ph 110	60	0.30	65	105	1450	5.0
			1ph 120		0.32
3IK15GN-C	3IK15A-C	15	1ph 220	50	0.18	90	125	1200	1.2
			1ph 230		0.20
3IK15GN-H	3IK15A-H	15	1ph 220	60	0.16	65	1G5	1450
			1ph 230		0.15	70
3IK15GN-S	3IK15A-S	15	3ph 220	50	0.14	220	125	1200	-
				60	0.12	180	105	1450
3IK15GN-S3	3IK15A-S3	15	3ph 380	50	0.08	220	125	1200	-
				60	0.07	180	105	1450

●When the motor is approved under various safety standards，the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110v，the assembly capacitor vaule it is according the label.

●Motor

Type	Model
Type	Pinion Shaft	Round Shaft
Lead Wire Tvpe	3IK15GN-A	3IK15A-A
	3IK1SGN-E	3IK15A-E
	3IK15GN-C	3IK15A-C
	3IK15GN-H	3IK15A-H
	3IK15GN-S	3IK15A-S
	3IK15GN-S3	3IK15A-S3

●Parallel Shaft Gearhead（Sold Separately）

Geartiead Type	Gearhead Model	Gear Ratio
Long Life • Low Noise	3GN□K	3、3.6、5、6、7,5、9、 12.5、15、18、 25、30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200
Long Life • Low Noise	3GN10XK(Decimal Gearhead )

●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately.

●Enter the gear ratio in the box（□）within the model name.

●The speed is calculated by dividing the motor's synchronous speed （50Hz ： 1500/min， 60Hz ： 1800/min） by the gear ratio. The actual speed is 2%-20% less than the displayed value，depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table， attach a decimal gearhead（gear ratio：10）between the gearhead and motor. In that case， the permissible torque is 5 N.m.

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
3IK15GN-A 3IK15GN-E 3IK15GN-C 3IK15GN-H 3IK15GN-S 3IK15GN-S3	3GN□K	50Hz	0.30	0.36	0.51	0.61	0.76	0.91	1.3	1.5	1.8	2.3	2.7	3.3	4.1	5	5	5	5	5	5	5	5
		50Hz	3.06	3.67	5.20	6.22	7.75	9.28	13.2	15.3	18.3	23.4	27.5	33.7	41.8	50	50	50	50	50	50	50	50
		60Hz	0.26	0.31	0.43	0.51	0.64	0.77	1.1	1.3	1.5	1.9	2.3	2.8	3.5	4.2	5	5	5	5	5	5	5
		60Hz	2.65	3.16	4.38	5.20	6.53	7.85	11.2	13.2	15.3	19.3	23.4	28.5	35.7	42.8	50	50	50	50	50	50	50

Mounting screws are included with gearhead.

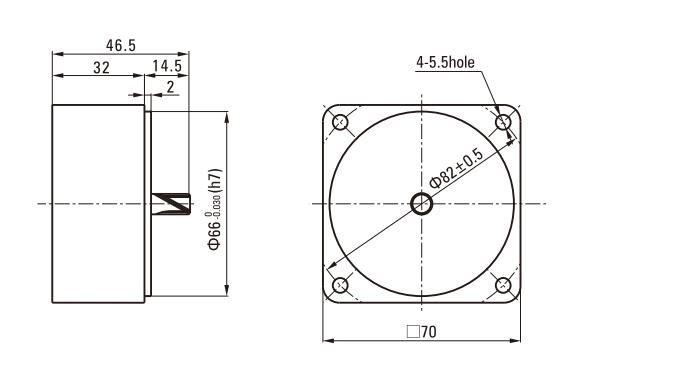

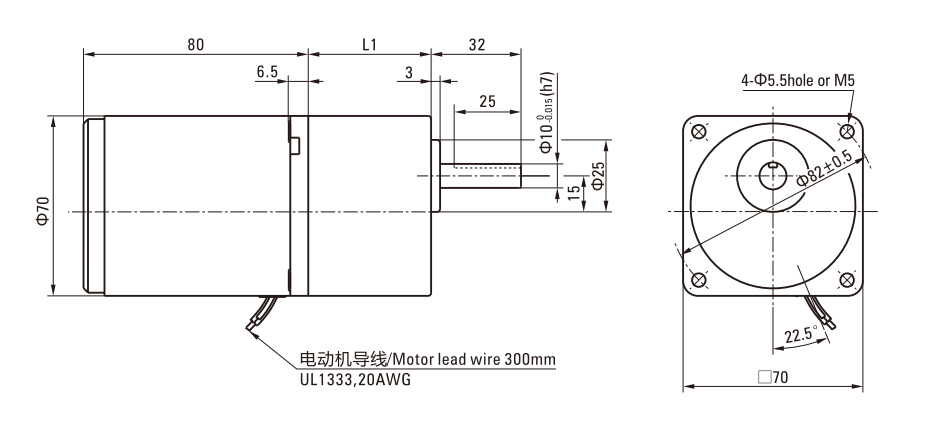

●Lead Wiring Type

Weight：Motor：1.1kg Gearhead：0.5kg

Motor Model	Gearhead Model	Gear Ratio	L1
3IK15GN-A 3IK15GN-E 3IK15GN-C 3IK15GN-H 3IK15GN-S 3IK15GN-S3	3GN□K	3~18	32
	3GN□K	25~200	42

Enter the gear ratio in the box(□)within the model name.

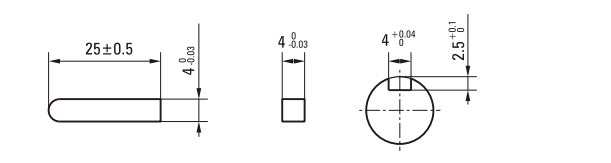

●Key•Keyway(Accessory Of Gearhead)

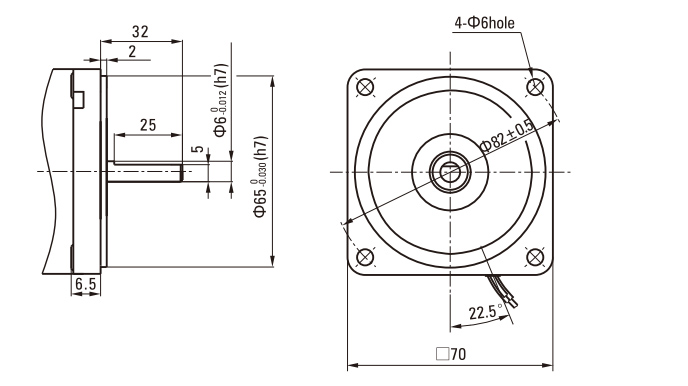

●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

●Decimal Gearhead

Can be connected to GN pinion shaft type
3GN10XK
Weight：0.3kg

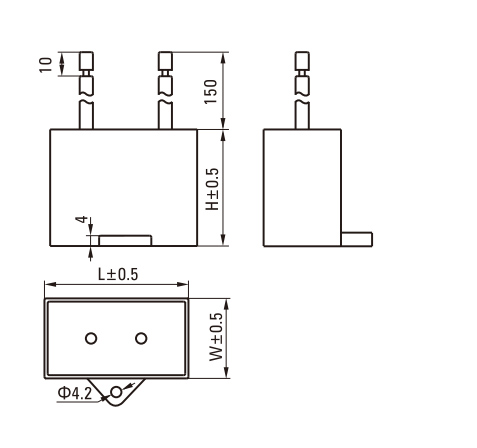

Model		Capacitor Model	L	W	H
Pinion Shaft	Round Shaft	Capacitor Model	L	W	H
3IK15GN-A	3IK15A-A	ZD60CFAUL	48	23	32
3IK15GN-E	3IK15A-E	ZD50CFAUL	47	20	31
3IK15GN-C	3IK15A-C	ZD12BFAUL	36	12	22

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional.

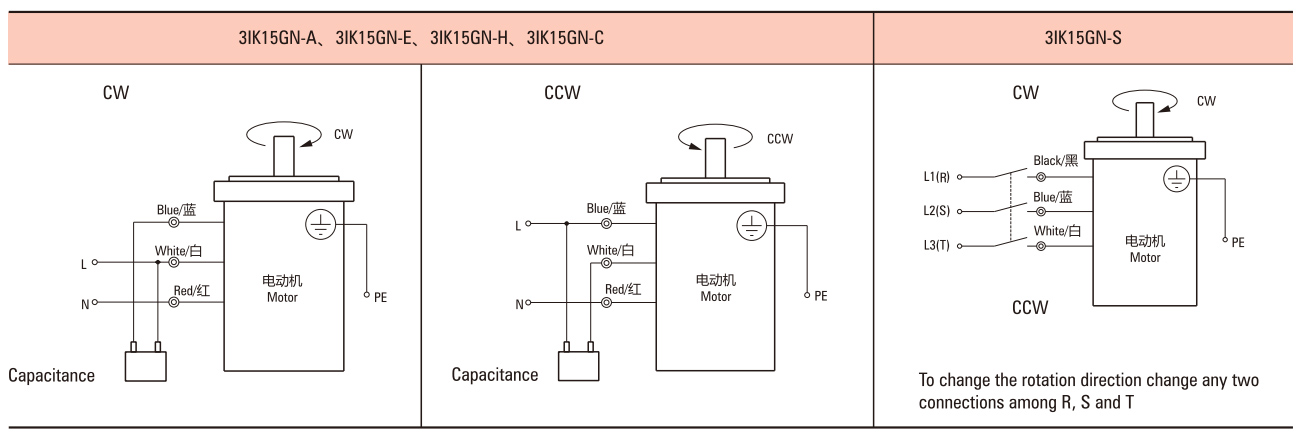

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.

●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.

Note:

Change the direction of single-phase motor rotation only after bring the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.
