25W Induction AC Motor/Gear Motor

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

Model •Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensions ①	Terminal Box Type Dimensions ②
4IK25GN-A (4IK25A-A)	4IK25GN-AT (4IK25A-AT )	25	1ph 100	50	0.50	120	200	1250	8.0
				60	0.55		165	1550
4IK25GN-E (4IK25-E)	4IK25GN-ET (4IK25A-ET)	25	1ph 110	60	0.45	120	165	1550	7.0
			1ph 120		0.50
4IK25GN-C (4IK25A-C )	4IK25GN-CT (4IK25A-CT)	25	1ph 220	50	0.25	120	200	1250	1.8
			1ph 230		0.23
4IK25GN-H (4IK25A-H)	4IK25GN-HT (4IK25A-HT)	25	1ph 220	60	0.23	120	165	1550
			1ph 230
4IK25GN-S (4IK25A-S )	4IK25GN-ST (4IK25A-ST)	25	3ph 220	50	0.185	350	200	1250	-
				60	0.170	250	165	1550
4IK25GN-S3 (4IK25A-S3)	4IK25GN-S3 (4IK25A-S3T)	25	3ph 380	50	0.106	350	200	1250	-
				60	0.098	250	165	1550

●When the motor is approved under various safety standards，the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110v，the assembly capacitor vaule it is according the label.

●Motor

Type	Model
Type	Pinion Shaft	Round Shaft
Lead Wire Type	4IK25GN-A	4IK25A-A
	4IK25GN-E	4IK25A-E
	4IK25GN-C	4IK25A-C
	4IK25GN-H	4IK25A-H
	4IK25GN-S	4IK25A-S
	4IK25GN-S3	4IK25A-S3
Terminal Box Type	4IK25GN-AT	4IK25A-AT
	4IK25GN-ET	4IK25A-ET
	4IK25GN-CT	4IK25A-CT
	4IK25GN-HT	4IK25A-HT
	4IK25GN-ST	4IK25A-ST
	4IK25GN-S3T	4IK25A-S3T

●Parallel Shaft Gearhead（Sold Separately）

Gearhead Type	Gearhead Model	Gear Ratio
Long Life • Low Noise	4GN□K	3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200
Long Life • Low Noise	4GN10XK (Decimal Gearhead)

●Enter the gear ratio in the box (□) within the model name.

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name

●Enter the gear ratio in the box（□）within the model name.

●The speed is calculated by dividing the motor's synchronous speed （50Hz ： 1500r/min、60Hz ： 1800r/min） by the gear ratio. The actual speed is 2%~20% less than the displayed value，depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table， attach a decimal gearhead（gear ratio：10）between the gearhead and motor. In that case， the permissible torque is 8 N.m.

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□	4GN□K	50Hz	0.49	0.58	0.81	0.97	1.2	1.5	2.0	2.4	2.9	3.7	4.4	5.3	6.6	7.9	8	8	8	8	8	8	8
		50Hz	5.00	5.91	8.26	9.89	12.2	15.3	20.4	24.4	29.6	37.7	44.9	54.1	67.3	80	80	80	80	80	80	80	80
		60Hz	0.40	0.48	0.67	0.80	1.0	1.2	1.7	2.0	2.4	3.0	3.6	4.3	5.4	6.5	8	8	8	8	8	8	8
		60Hz	4.08	4.89	6.83	8.16	10.2	12.2	17.3	20.4	24.4	30.6	36.7	43.8	55.1	66.3	80	80	80	80	80	80	80

Mounting screws are included with gearhead.

●Lead Wiring Type①

Weight：Motor：1.6kg Gearhead：0.80kg

Motor Model	Gearhead Model	Gear Ratio	L1
4IK25GN-A 4IK25GN-E 4IK25GN-C 4IK25GN-H 4IK25GN-S 4IK25GN-S3	4GN□K	3~18	32
	4GN□K	25~200	43.5

●Enter the gear ratio in the box (□) within the model name

●Terminal Box Type②

Weight：Motor：1.75kg Gearhead：0.8kg

Motor Model	Gearhead Model	Gear Ratio	L1
4IK25GN-AT 4IK25GN-ET 4IK25GN-CT 4IK25GN-HT 4IK25GN-ST 4IK25GN-S3T	4GN□K	3~18	32
	4GN□K	25~200	43.5

●Enter the gear ratio in the box (□) within the model name

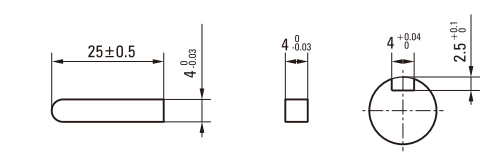

●Key•Keyway(Accessory Of Gearhead)

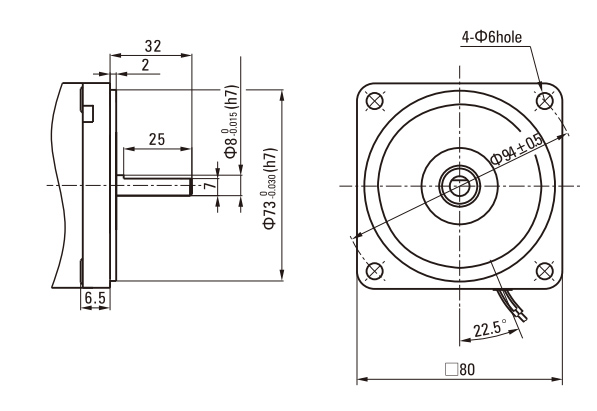

●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

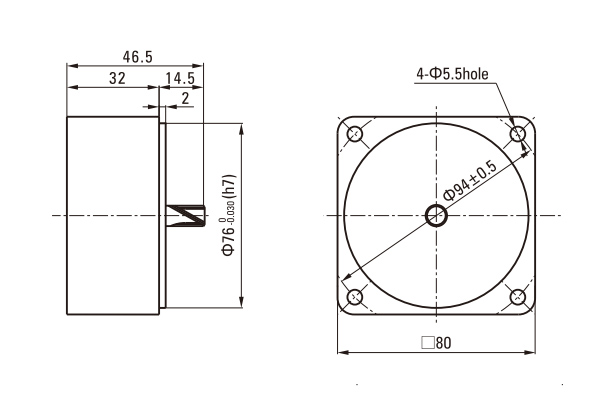

●Decimal Gearhead

Can be connected to GN pinion shaft type
4GN10XK
Weight：0.41kg

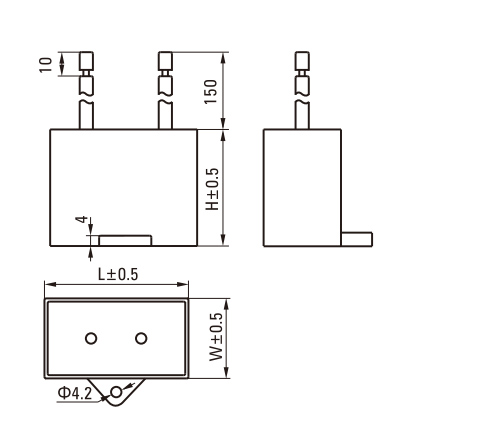

Model		Capacitor Model	L	W	H
Pinion Shaft	Round Shaft	Capacitor Model	L	W	H
4IK25GN-A□	4IK25A-A□	ZD80CFAUL	48	26.5	38
4IK25GN-E□	4IK25A-E□	ZD70CFAUL	47	24	37
4IK25GN-C□	4IK25A-C□	ZD18BFAUL	36	13.5	24

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional

●Enter the code that represents the terminal box type "T" in the box (□ ) within the model name

■ Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (D) within the model name

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed (50Hz：1500r/min、60Hz：1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displaved value, depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table， attach a mid-gearbox (gear ratio：10) between the gearhead and motor. In that case, the permissible torque is 8N.m.

■Allowable Torque Unit：Upside（N.m）/Belowside（kgf.cm）

Type Motor/Gearhead		Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□	4GN□RC 4GN□RT	Allowable Torque	50Hz	0.36	0.43	0.59	0.71	0.99	1.18	1.64	1.97	2.37	3.29	3.95	4.73	6.58	7.10	8.00	8.00	8.00	8.00	8.00	8.00
			50Hz	3.62	4.35	6.04	7.25	10.1	12.1	16.8	20.1	24.2	33.5	40.3	48.3	67.1	72.5	80.0	80.00	80.00	80.00	80.00	80.00
			60Hz	0.29	0.34	0.48	0.57	0.80	0.95	1.33	1.59	1.91	2.65	3.18	3.82	5.30	5.73	7.16	8.00	8.00	8.00	8.00	8.00
			60Hz	2.92	3.51	4.87	5.84	8.12	9.74	13.5	16.2	19.5	27.1	32.5	39.0	54.1	58.4	73.0	80.00	80.00	80.00	80.00	80.00

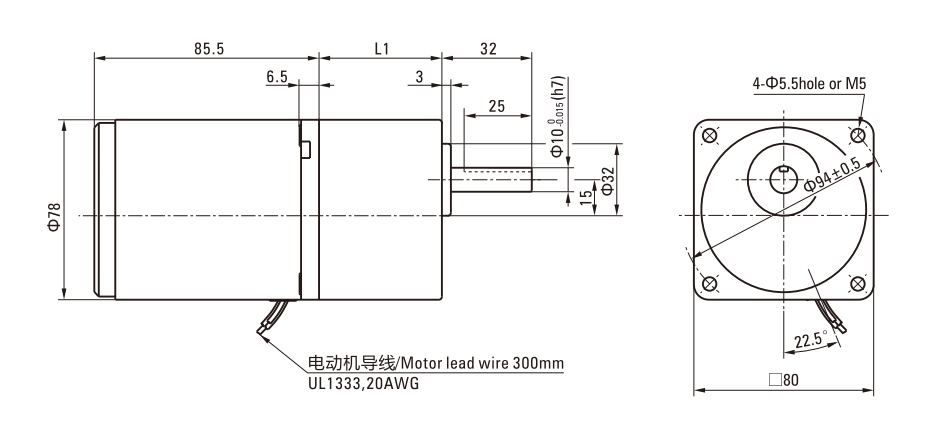

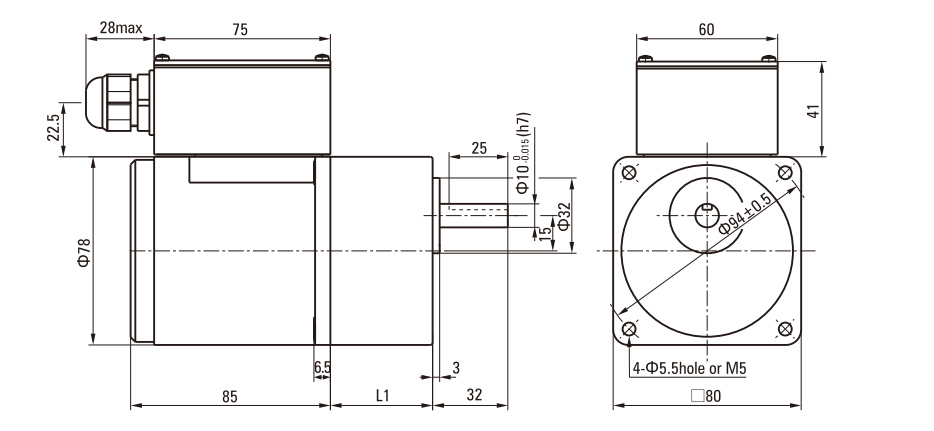

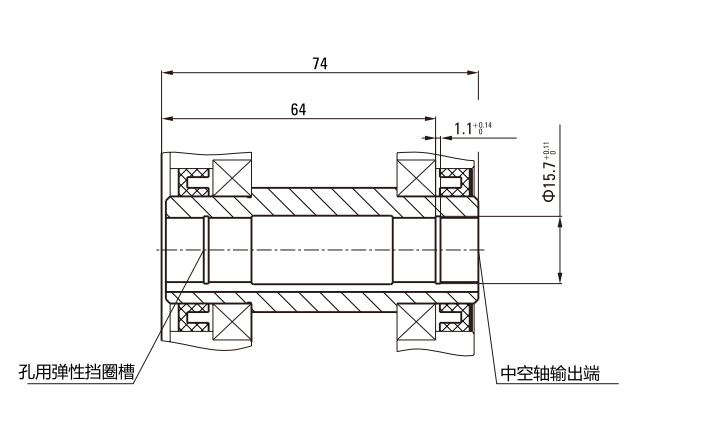

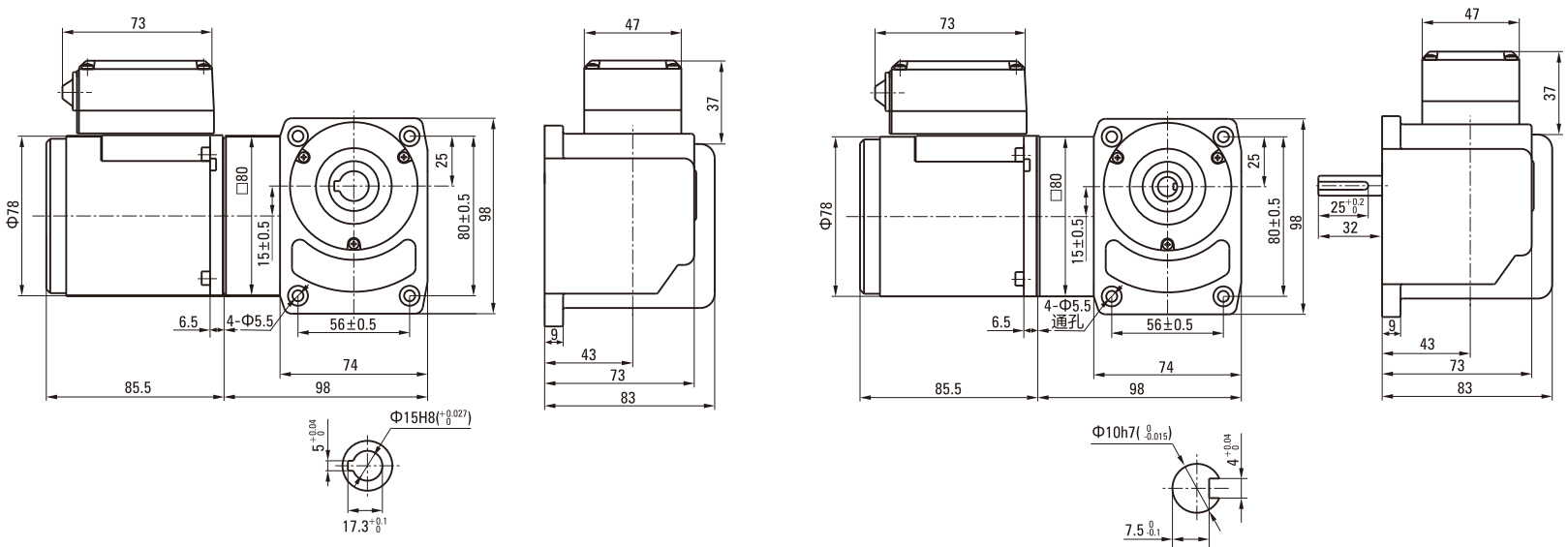

■Induction Type Drawing

■Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (口) within the model name.

Enter the gear ratio in the box (口) within the model name.

The speed is calculated by diving the motor's synchronous speed (50Hz：1500r/min、60Hz：1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value，depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a mid-gearbox (gear ratio：10) between the gearhead and motor. In that case， the permissible torque is 8N.m

■Allowance Torque Unit：Upside（N.m）/Belowside（kgf.cm）

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□	4GN□RH 4GN□RA	Allowable Torque	50Hz	0.26	0.31	0.39	0.46	0.58	0.70	0.97	1.16	1.39	1.93	2.32	2.78	3.87	4.64	5.80	6.96	7.74	8.00	8.00	8.00
			50Hz	2.63	3.16	3.95	4.74	5.92	7.10	9.87	11.8	14.2	19.7	23.7	28.4	39.5	47.4	59.2	71.0	78.9	80.0	80.0	80.0
			60Hz	0.21	0.31	0.39	0.46	0.58	0.70	0.97	1.16	1.39	1.93	2.32	2.78	3.87	4.64	5.82	6.96	7.74	8.00	8.00	8.00
			60Hz	2.12	3.16	3.95	4.74	5.92	7.10	9.87	11.8	14.2	19.7	23.7	28.4	39.5	47.4	59.2	71.0	78.9	80.0	80.0	8.00

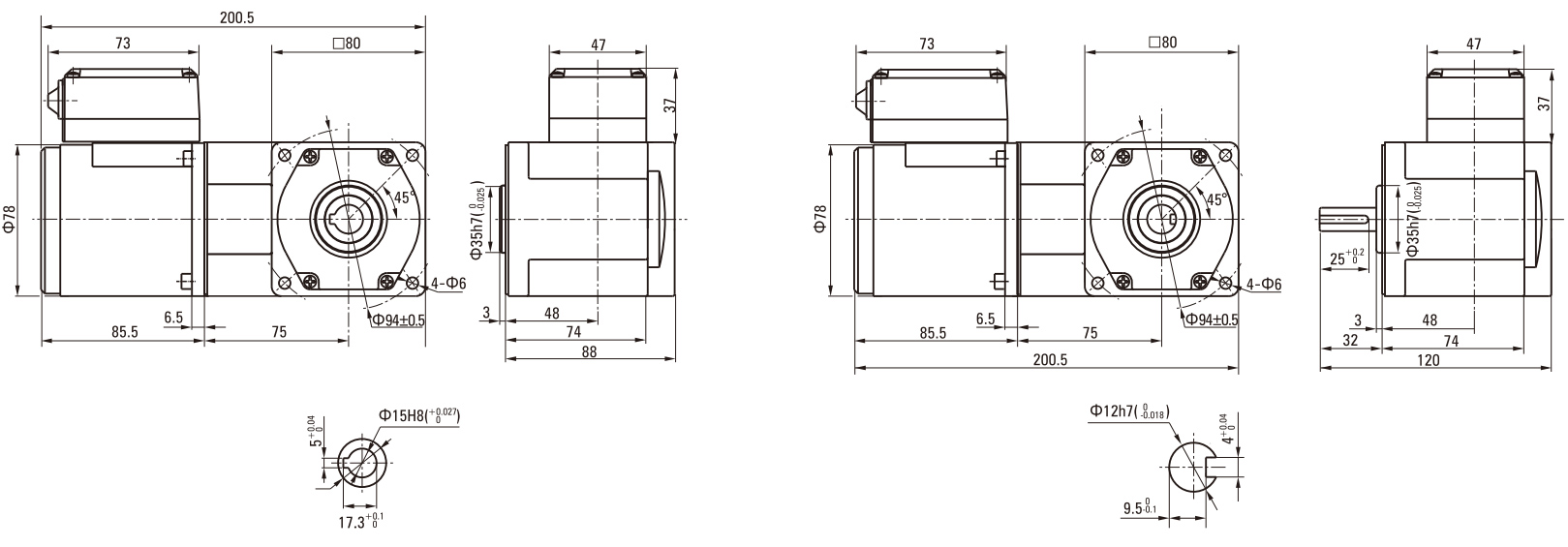

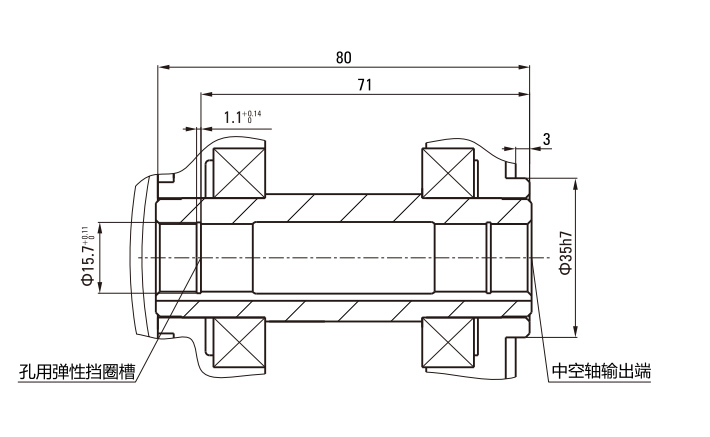

■Induction Type Drawing

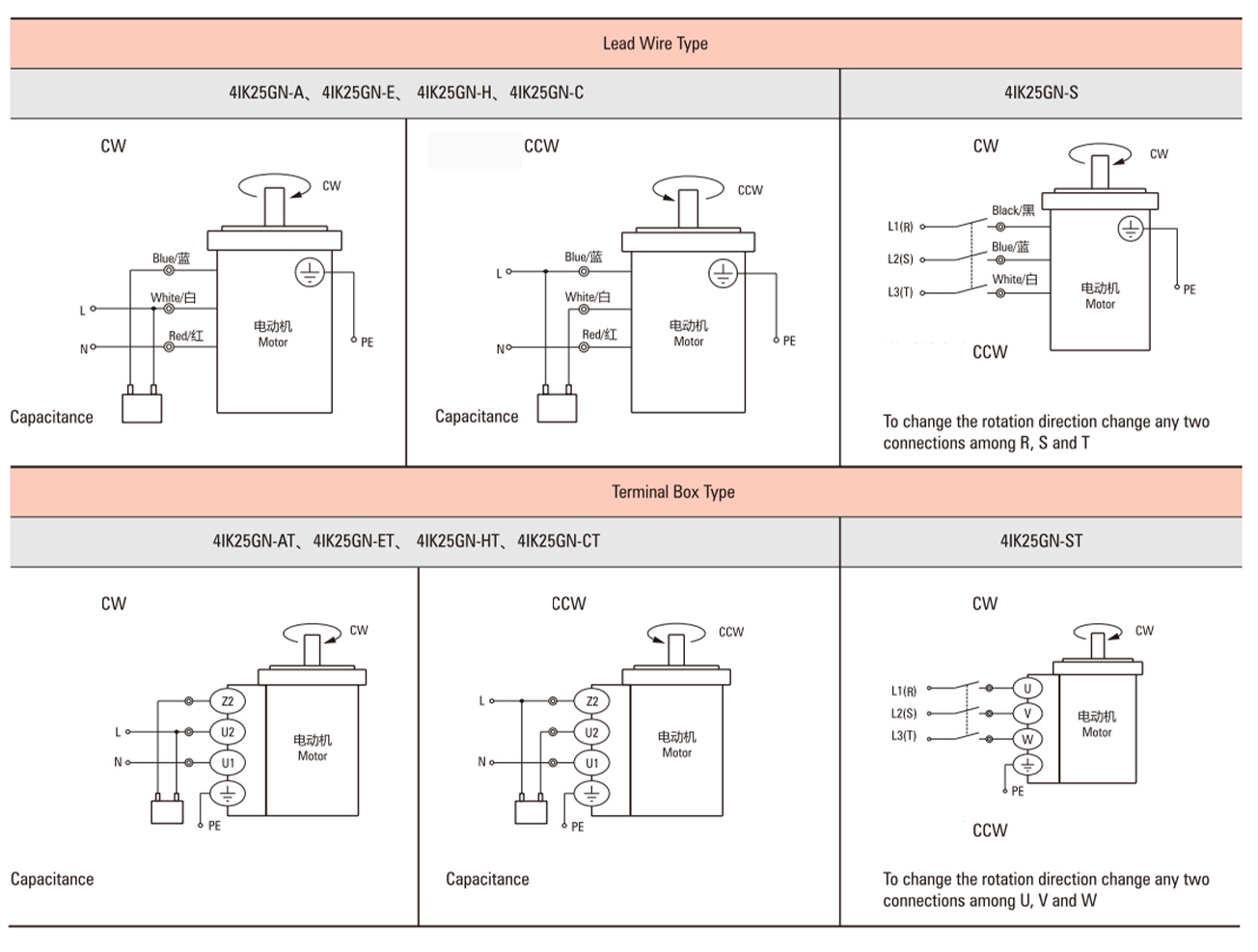

■Wiring Diagram

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.

●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
