60W Induction AC Motor/Gear Motor

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

Model Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type Dimensiors ①	Terminal Box Type Dimensions②
5IK60GN-AF (5IK60A-AF)	5IK60G-AFT (5IK60A-AFT)	60	1ph 100	50	1.00	320	470	1250	20.0
				60	1.10		380	1550
5IK60GN-EF (5IK60A-EF )	5IK60GN-EFT ( 5IK60A-EFT )	60	1ph 110	60	0.80	300	380	1550	12.0
			1ph 120		0.85
5IK60GN-CF (5IK60A-CF )	5IK60GN-CFT (5IK60A-CFT)	60	1ph 220	50	0.50	340	470	1250	4.0
			1ph 230		0.55
5IK60GN-HF (5IK60A-HF)	5IK60GN-HFT (5IK60A-HFT)	60	1ph 220	60	0.50	340	380	1550
			1ph 230		0.55
5IK60GN-SF (5IK60A-SF)	5IK60GN-SFT (5IK60A-SFT)	60	3ph 220	50	0.45	1000	470	1250	-
				60	0.40	800	380	1550
5IK60GN-S3F (5IK60A-S3F)	5IK60GN-S3FT (5IK60A-S3FT)	60	3ph 380	50	0.26	1000	470	1250	-
				60	0.23	800	380	1550

●When the motor is approved under various safety standards，the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110v，the assembly capacitor vaule it is according the label.

●Motor

Type	Model
Type	Pinion Shaft	Round Shaft
Lead Wire Type	5IKC60GN-AF	5IK60A-AF
	5IK60GN-EF	5IK60A-EF
	5IK60GN-CF	5IK60A-CF
	5IK60GN-HF	5IK60A-HF
	5IK60GN-SF	5IK60A-SF
	5IK60GN-S3F	5IK60A-S3F
Terminal Box Type	5IK60GN-AFT	5IK60A-AFT
	5IK60GN-EFT	5IK60A-EFT
	5IK60GN-CFT	5IKB0A-CFT
	5IK60GN-HFT	5IK60A-HFT
	5IK60GN-SFT	5IK60A-SFT
	5IK60GN-S3FT	5IK60A-S3FT

●Parallel Shaft Gearhead（Sold Separately）

Gearhead Type	Gearhead Model	Gear Ratio
Long Life • Low Noise	5GN□K	3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、50、50、75、90、 100、120、150、180 、200
Long Life • Low Noise	5GN10XK ( Decimal Gearhead)

●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box（□）within the model name.

●The speed is calculated by dividing the motor's synchronous speed （50Hz ： 1500r/min、60Hz ： 1800r/min） by the gear ratio. The actual speed is 2%~20% less than the displayed value，depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table， attach a decimal gearhead（gear ratio：10）between the gearhead and motor. In that case， the permissible torque is 10 N.m.

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
5IK60GN-AF□ 5IK60GN-EF□ 5IK60GN-CF□ 5IK60GN-HF□ 5IK60GN-SF□ 5IK60GN-S3□	5GN□K	50Hz	1.1	1.4	1.9	2.3	2.9	3.4	4.8	5.7	6.8	8.6	10	10	10	10	10	10	10	10	10	10	10
		50Hz	11.2	14.2	19.3	23.4	29.6	34.7	48.9	58.1	69.3	87.7	100	100	100	100	100	100	100	100	100	100	100
		60Hz	0.92	1.1	1.5	1.8	2.3	2.8	3.8	4.6	5.5	6.9	8.3	10	10	10	10	10	10	10	10	10	10
		60Hz	9.38	11.2	15.3	18.3	23.4	28.5	38.7	46.9	56.1	70.1	84.7	100	100	100	100	100	100	100	100	100	100

Mounting screws are included with gearhead.

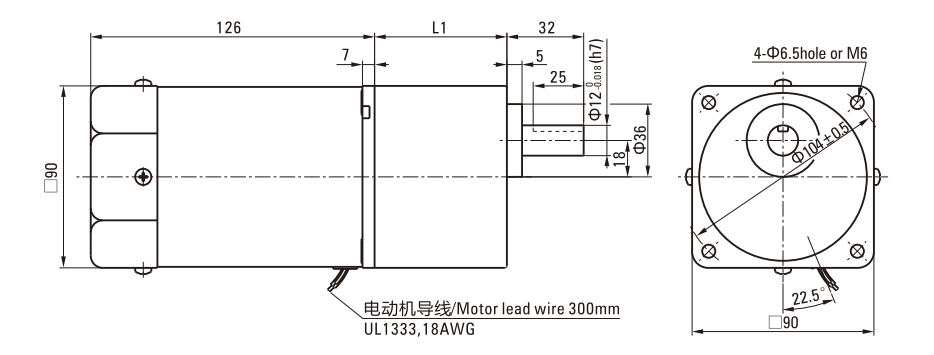

●Lead Wiring Type①

Weight：Motor：2.7kg Gearhead：1.35kg

Motor Model	Gearhead Model	Gear Ratio	L1
5IK60GN-AF 5IK60GN-EF 5IK60GN-CF 5IK60GN-HF 5IK60GN-SF 5IK60GN-S3F	5GN□K	3~18	42
	5GN□K	25~200	60

●Enter the gear ratio in the box (□) within the model name

●Terminal Box Type②

Weight：Motor：2.85kg Gearhead：1.35kg

Motor Model	Gearhead Model	Gear Ratio	L1
5IK60GN-AFT 5IK60GN-EFT 5IK60GN-CFT 5IK60GN-HFT 5IK60GN-SFT 5IK60GN-S3FT	5GN□K	3~18	42
	5GN□K	25~200	60

●Enter the gear ratio in the box (□) within the model name

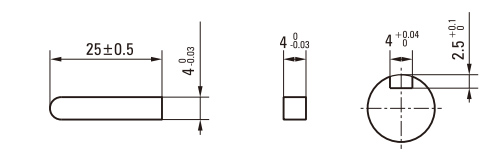

●Key•Keyway(Accessory Of Gearhead)

●Shaft Section Of Round Shaft Type

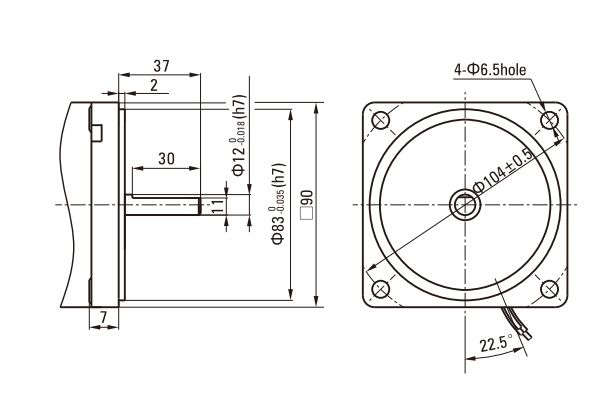

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

●Decimal Gearhead

Can be connected to GN pinion shaft type
5GN10XK
Weight：0.6kg

Model		Capacitor Model	L	W	H
Pinion Shaft	Round Shaft	Capacitor Model	L	W	H
5IK60GN-AF□	5IK60A-AF□	ZD200CFAUL	47	23	35
5IK60GN-EF□	5IK60A-EF□	ZD120CFAUL	47	17	31
5IK60GN-CF□	5IK60A-CF□	ZD40BFAUL	47	17	31

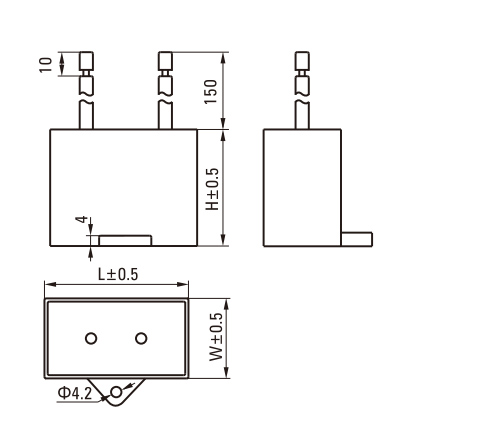

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional

●Enter the code that represents the terminal box type(T) in the box (□) within the model name

●The direction of motor rotation is as viewed from the shaft end of motor.CW represents the clockwise direction，while CCW represents the counterclockwise direction.
●Name indicated in the list is pinion shaft type，also valid for the equivalent round shaft type.

Note:

Change the direction of sinale-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating，motor may ianore reversing command or change its direction of rotation after some delay.

■ Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed （50Hz：1500r/min、60Hz：1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table， attach a mid-gearbox （gear ratio：10） between the gearhead and motor. In that case， the permissible torque is 20N.m.

■Allowable Torque Unit：Upside（N.m）/Belowside（kgf.cm）

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5IK60GU-AF□ 5IK60GU-EF□ 5IK60GU-CF□ 5IK60GU-HF□ 5IK60GU-SF□ 5IK60GN-S3F□	5GU□RC 5GU□RT	Allowable Torque	50Hz	0.85	1.02	1.42	1.70	2.37	2.84	3.95	4.73	5.68	7.89	9.47	10.2	14.2	17.0	20.0	20.0	20.0	20.0	20.0	20.0
			50Hz	8.70	10.4	14.5	17.4	24.2	29.0	40.3	48.3	58.0	80.5	96.6	104	145	174	200	200	200	200	200	200
			60Hz	0.69	0.82	1.15	1.37	1.91	2.29	3.18	3.82	4.58	6.36	7.64	8.25	11.5	13.7	17.2	20.0	20.0	20.0	20.0	20.0
			60Hz	6.73	8.08	11.2	13.5	19.48	23.37	32.46	38.96	46.75	64.93	77.92	84.1	117	140	175	200	200	200	200	200

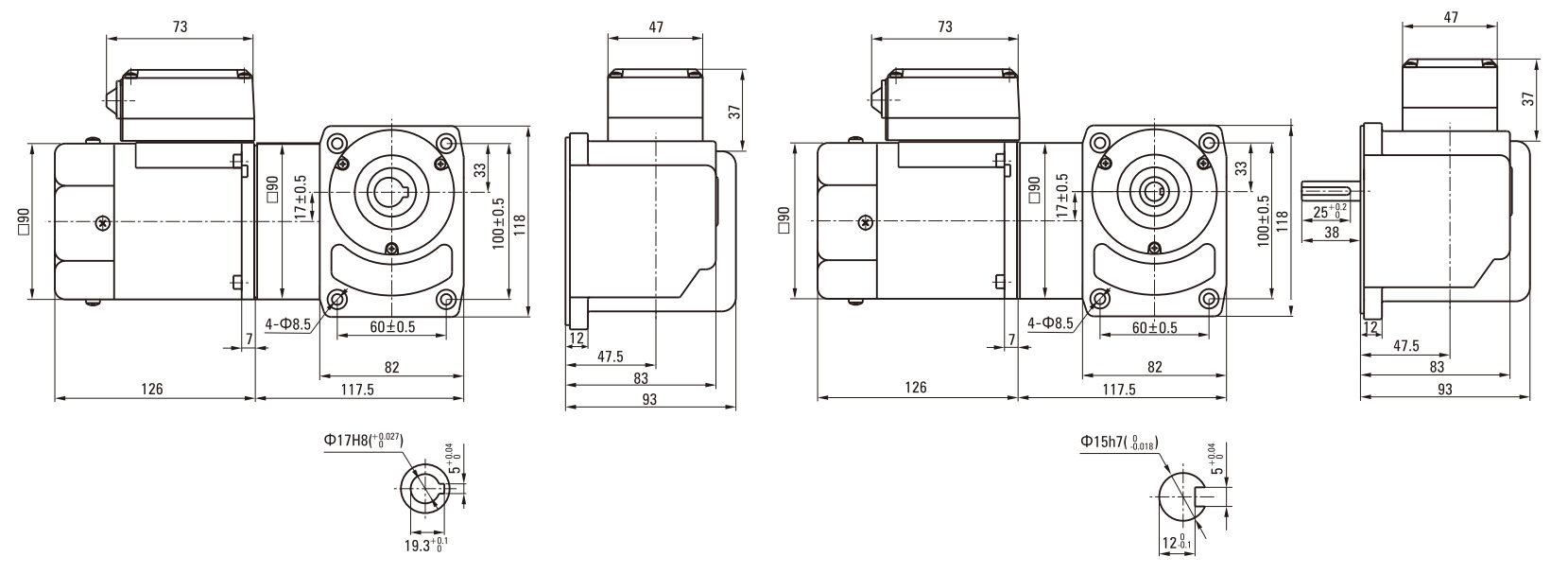

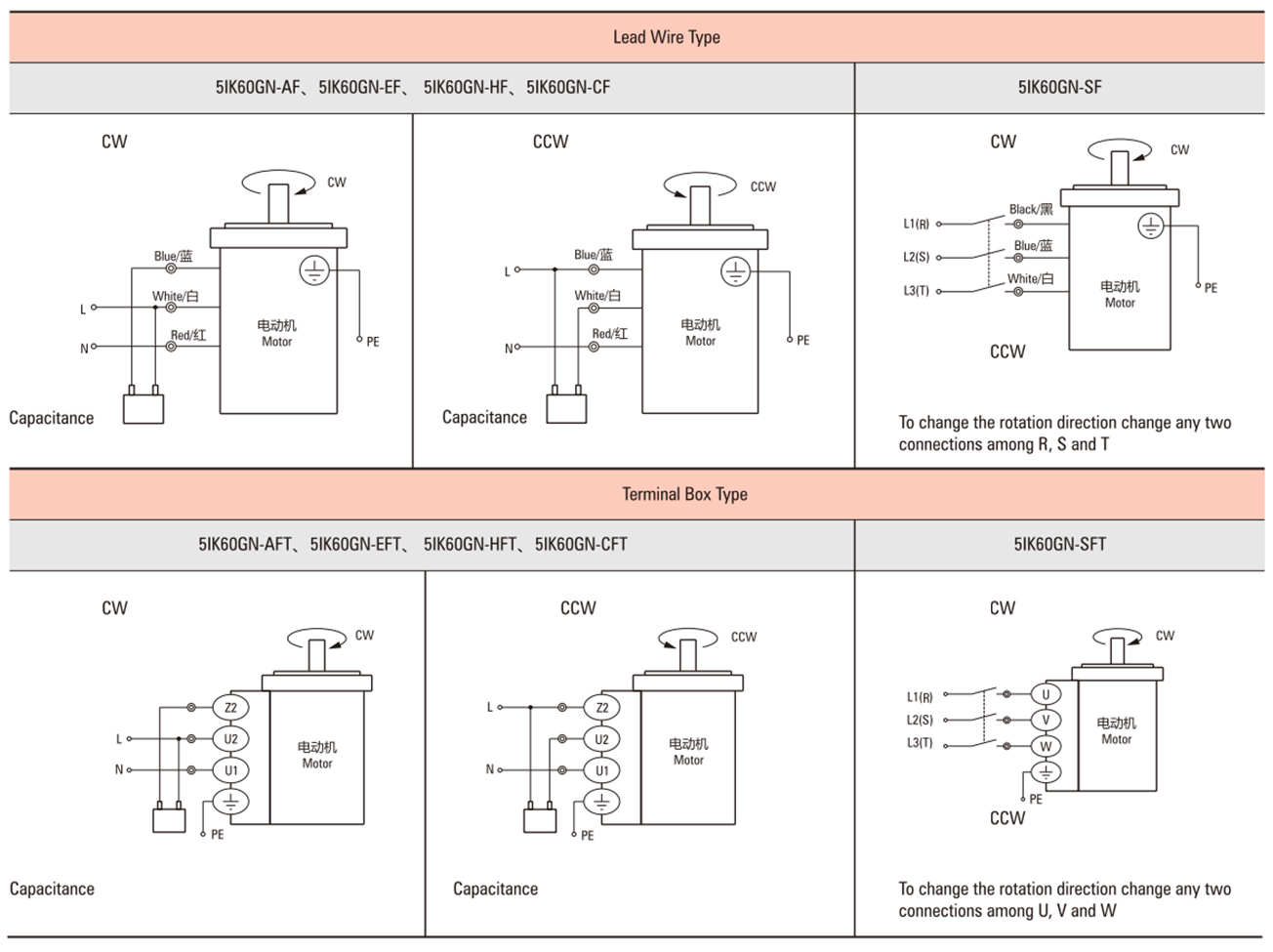

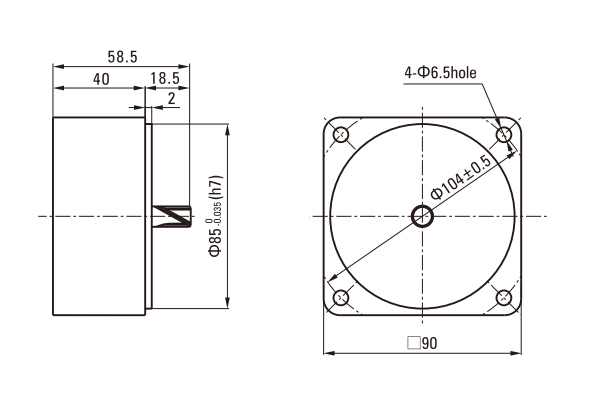

■Induction Type Drawing

■Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type （T） in the box （口） within the model name.

●Enter the gear ratio in the box （口） within the model name.

●The speed is calculated by diving the motor's synchronous speed （50Hz：1500r/min、60Hz：1800r/min） by the gear ratio. The actual speed is 2%~20% less than the displayed value，depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a mid-gearbox （gear ratio：10） between the gearhead and motor. In that case， the permissible torque is 20N.m.

■Allowable Torque Unit：Upside（N.m）/Belowside（kgf.cm）

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5IK60GU-AF□ 5IK60GU-EF□ 5IK60GU-CF□ 5IK60GU-HF□ 5IK60GU-SF□ 5IK60GN-S3F□	5GU□RH 5GU□RA	Allowable Torque	50Hz	0.62	0.74	0.93	1.11	1.39	1.67	2.32	2.78	3.34	4.64	5.57	6.68	9.28	11.1	13.9	16.7	18.6	20.0	20.0	20.0
			50Hz	6.31	7.58	9.47	11.4	14.2	17.0	23.7	28.4	34.1	47.4	56.8	68.2	94.7	114	142	170	189	200	200	200
			60Hz	0.50	0.60	0.75	0.90	1.12	1.35	1.87	2.25	2.69	3.74	4.49	5.39	7.49	8.98	11.2	13.5	15.0	18.0	20.0	20.0
			60Hz	5.09	6.11	7.64	9.17	11.5	13.7	19.1	22.9	27.5	38.2	45.8	55.0	76.4	91.7	115	137	153	183	200	200

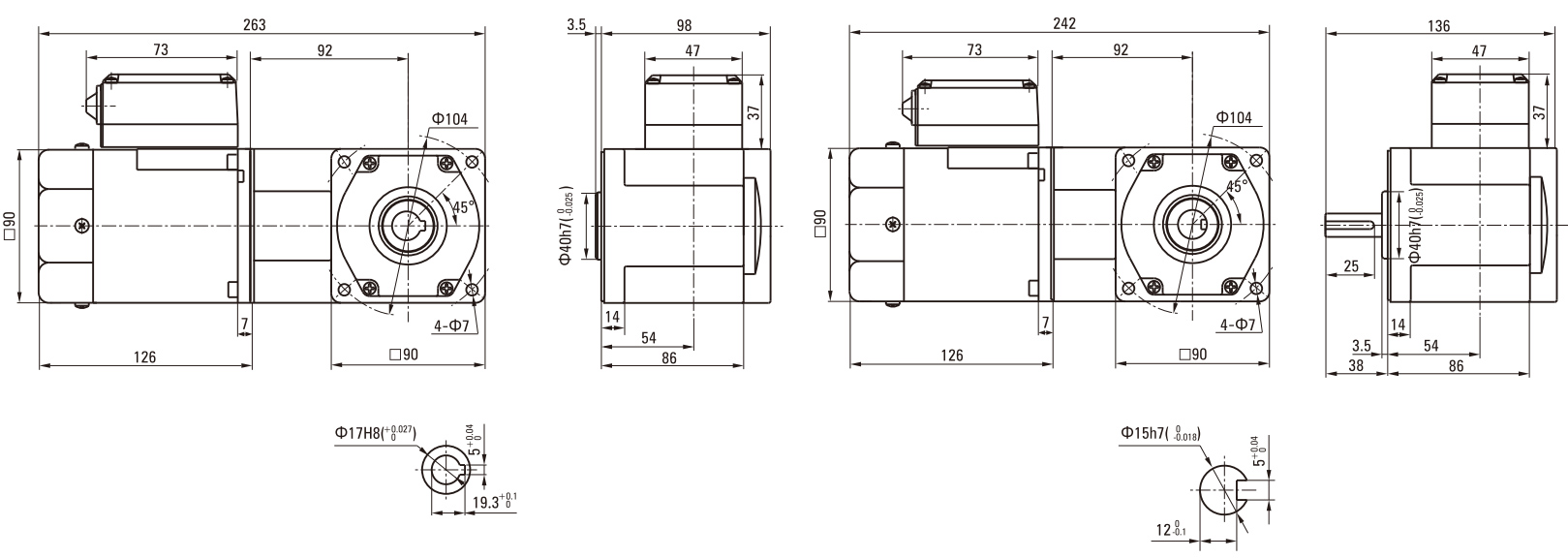

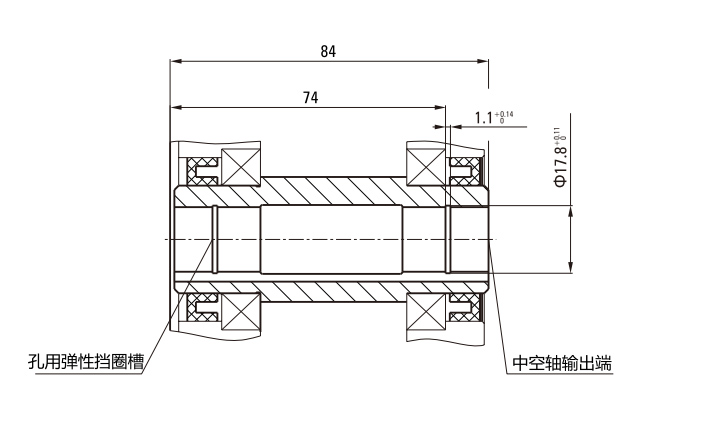

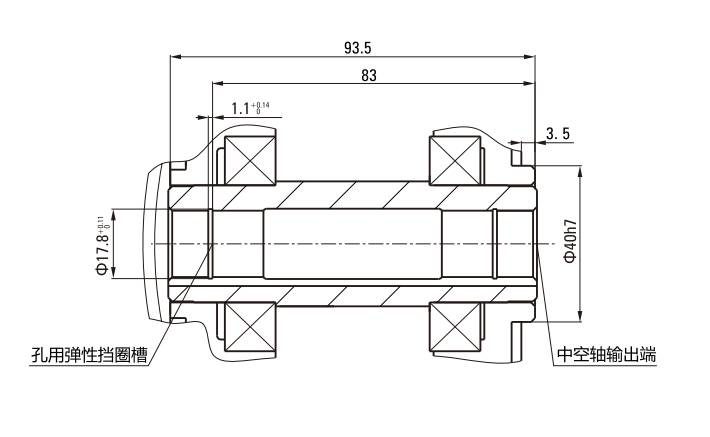

■Induction Type Drawing
