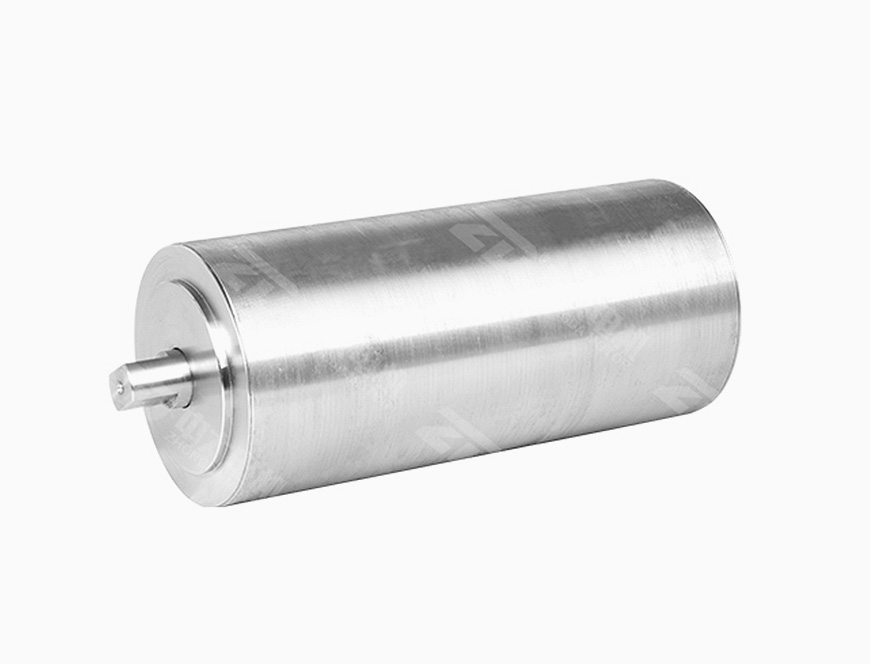

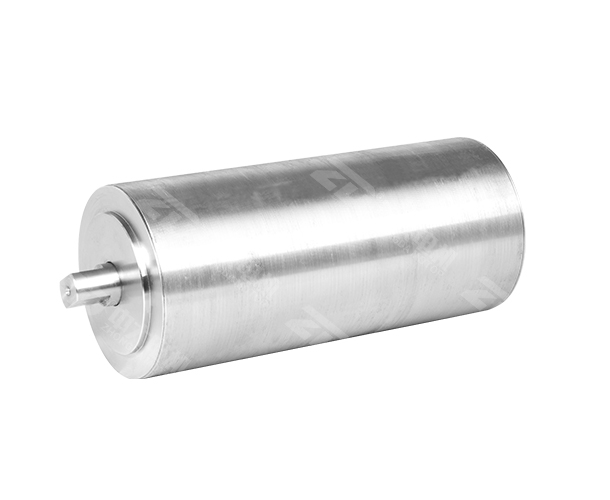

DM/DMX165 AC Motor Roller

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Product Information

The motor roller is very robust and can withstand great torque and high radial load. It has the advantages of high profile, high impact and high torque, and can choose the best choice of load transmission equipment.

●Food processing conveyer
●Airport baggage handling systems
●Packing conveyer
●Belt balance
●Post sorting conveyer
●Steel or plastic module mesh belt application
●Crops
●Dry, wet and need to develop the application environment

■ DM/DMX138 Characteristics Of Motor Roller

●Roller Shell

•Material of standard drum shell is mild steel, zinc plated, with ECO mark

•Food garde shell is 304 stainless steel

•Standard cylinder surface processing with non slip roller

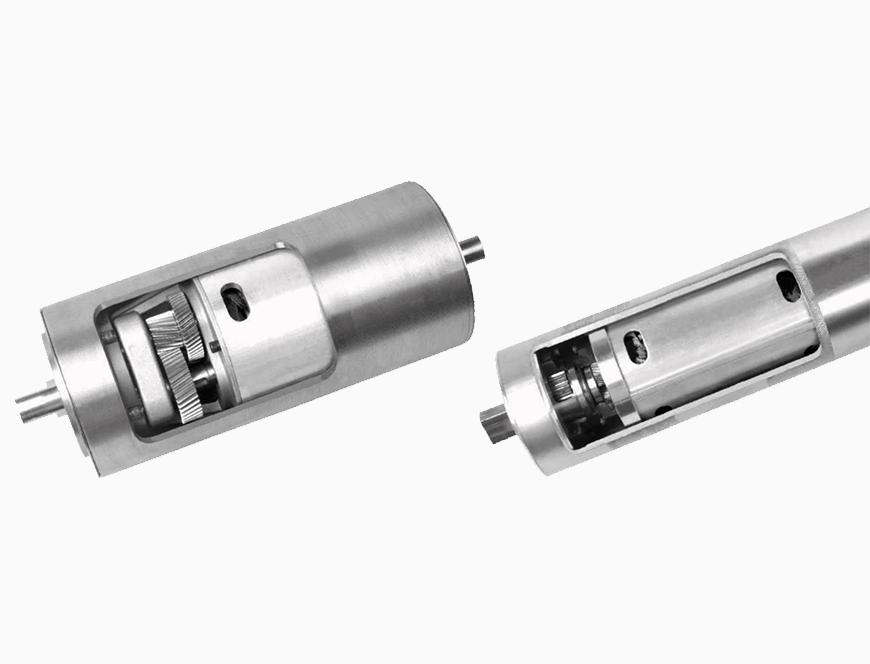

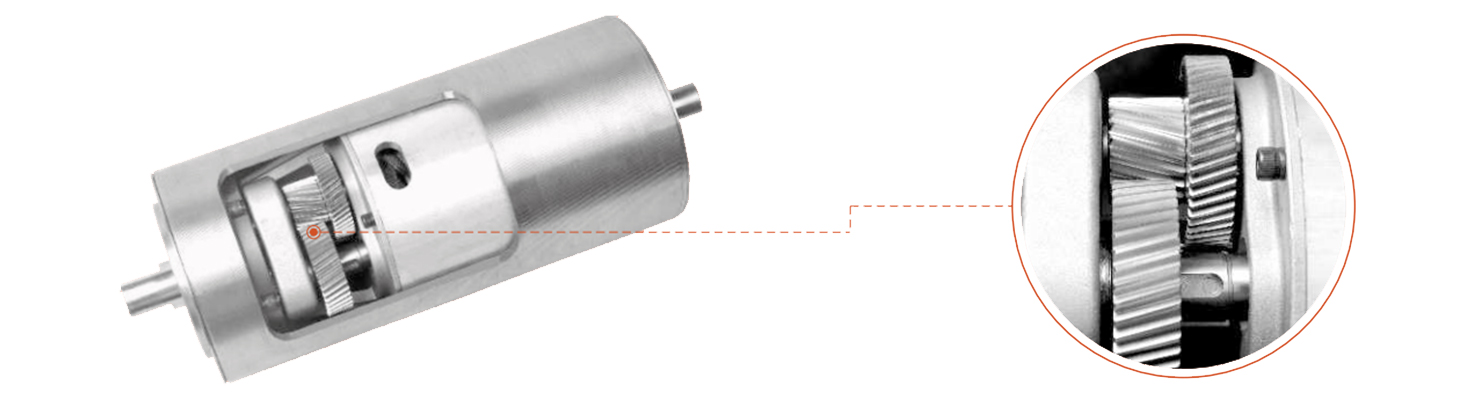

●Gear Drive

•High alloy steel grinding gear, to ensure the transmission of ultra low noise, aluminum gear box

•Heavy load motor roller adopts planetary gear transmission, according to heavy load design, high torque transmission

●Motor

•When 50Hz or 60Hz is used, it can be applied to all kinds of universal voltage

•Motor insulation class F

•All motor additional overheat protector

•Oil immersed motor cooling

•Cable outlet type, cable length of 1.2M

●Seal Level

•Double seal design for shaft end

•Motor roller sealing protection level is IP66/IP67

●Oiling

•Motor roller factory before has according to the standard oil

•Every 5000 hours to run oil change time

●Other

•Horizontal installation

•Can be equipped with electromagnetic brake, but the shortest length of the cylinder will be extended accordingly

•Belt speed and tube length can be produced according to customer requirements

•According to customer requirements, can produce a variety of non - standard motor roller

Pn kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.37	4	2	12.35	57.57	111.7	28.20	342	400
			15.06	47.21	91.60	34.40	417	400
			20.04	35.48	68.90	45.70	554	400
		3	24.30	29.26	56.80	52.30	634	400
			31.70	22.43	43.50	68.30	828	400
			39.17	18.15	35.20	84.40	1023	400
			46.16	15.40	29.90	99.40	1205	400
			61.96	11.48	22.30	141.4	1714	400
0.55	4	2	12.35	56.32	109.3	42.80	519	400
			15.06	46.19	89.60	52.20	633	400
			20.04	34.71	67.40	69.50	842	400
		3	39.17	17.76	34.50	135.8	1646	400
			46.16	15.07	29.20	160.0	1940	400
			61.96	11.23	21.80	214.8	2604	400
0.75	4	2	12.35	56.32	109.3	58.40	708	400
			15.06	46.19	89.60	71.20	863	400
			20.04	34.71	67.40	94.70	1148	400
		3	24.30	28.62	55.60	108.5	1315	400
			31.70	21.94	42.60	141.5	1715	400
			39.17	17.7B	34.50	174.8	2119	400
			46.16	15.07	29.20	206.0	2497	400
			61.96	11.23	21.80	276.5	3352	400
1.10	2	2	9.470	153.42	297.8	31.40	381	400
			12.35	117.65	228.3	41.00	497	400
			15.06	96.48	187.3	50.00	606	400
			20.04	72.50	140.7	66.50	805	400
		3	24.30	59.79	116.0	76.10	923	400
			31.70	45.83	89.00	99.30	1204	400
			39.17	37.09	72.00	122.7	1488	400
			46.16	31.48	61.10	144.7	1753	400
	4	2	12.35	56.32	109.3	85.60	1038	400
			15.06	46.19	89.60	104.4	1266	400
			20.04	34.71	67.40	139.0	1684	400
		3	24.30	28.62	55.60	159.1	1928	400
			31.70	21.94	42.60	207.5	2515	400
			39.17	17.76	34.50	256.4	3108	400
			46.16	15.07	29.20	302.2	3663	400
1.50	4	2	12.35	57.57	111.7	114.2	1385	400
			15.06	47.21	91.60	139.3	1689	400
			20.04	35.48	68.90	185.4	2247	400
		3	24.30	29.26	56.80	212.2	2572	400
		3	31.70	22.43	43.50	276.8	3355	400
2.20	2	2	9.470	153.42	297.8	62.90	762	400
			12.35	117.65	228.3	82.00	994	400
			15.06	96.48	187.3	100.0	1212	400
			20.04	72.50	140.7	133.1	1613	400
		3	24.30	59.79	116.0	152.3	1846	400
			31.70	45.83	89.00	198.7	2408	400
			39.17	37.09	72.00	245.5	2976	400
			46.16	31.48	61.10	289.3	3507	400

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

Pn kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.55	4	2	9.860	48.63	137.0	28.80	506	380
			12.01	39.91	112.4	35.00	617	380
			15.26	31.41	88.50	44.50	784	380
			17.63	27.18	76.60	51.50	906	380
			20.99	22.84	64.30	61.20	1078	380
			24.66	19.44	54.80	71.90	1266	380
			27.38	17.50	49.30	79.90	1406	380
			30.82	15.55	43.80	89.90	1583	380
			36.07	13.29	37.40	105.3	1853	380
			39.70	12.07	34.00	115.8	2039	380
			49.62	9.66	27.20	144.8	2549	380
0.75	4	2	9.860	48.63	137.0	39.20	690	380
			12.01	39.91	112.4	47.80	841	380
			15.26	31.41	88.50	60.70	1068	380
			17.63	27.18	76.60	70.20	1235	380
			20.99	22.84	64.30	83.50	1470	380
			24.66	19.44	54.80	98.10	1727	380
			27.38	17.50	49.30	108.9	1917	380
			30.82	15.55	43.80	122.6	2158	380
			36.07	13.29	37.40	143.5	2526	380
			39.70	12.07	34.00	158.0	2780	380
			49.62	9.66	27.20	197.5	3475	380
1.10	2	2	9.860	100.86	284.1	27.70	488	380
			12.01	82.77	233.2	33.80	595	380
			15.26	65.15	183.5	42.90	756	380
			17.63	56.37	158.8	49.60	873	380
			20.99	47.36	133.4	59.10	1039	380
			24.66	40.31	113.6	69.40	1221	380
			27.38	36.31	102.3	77.00	1356	380
			30.82	32.25	90.90	86.70	1526	380
			36.07	27.55	77.60	101.5	1786	380
			39.70	25.04	70.50	111.7	1966	380
			49.62	20.03	56.40	139.6	2457	380
1.50	4	2	9.860	48.63	137.0	78.40	1380	380
			12.01	39.91	112.4	95.60	1682	380
			15.26	31.41	88.50	121.4	2137	380
			17.63	27.18	76.60	140.3	2470	380
			20.99	22.84	64.30	167.0	2940	380
			24.66	19.44	54.80	196.2	3453	380
			27.38	17.50	49.30	217.9	3835	380
			30.82	15.55	43.80	245.3	4317	380
			36.07	13.29	37.40	287.1	5052	380
2.20	2	2	9.860	100.86	284.1	55.50	976	380
			12.01	82.77	233.2	67.60	1189	380
			15.26	65.15	183.5	85.90	1511	380
			17.63	56.37	158.8	99.20	1747	380
			20.99	47.36	133.4	118.1	2079	380
			24.66	40.31	113.6	138.8	2442	380
			27.38	36.31	102.3	154.1	2712	380
			30.82	32.25	90.90	173.4	3053	380
			36.07	27.55	77.60	203.0	3573	380
			39.70	25.04	70.50	223.4	3932	380
			49.62	20.03	56.40	279.2	4915	380

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

Standard Drum Length And Weight:
Outer Tube Length SL Unit: mm		400	450	500	550	600	650	700	750	800	850	900	950	1000
Average Weight Unit: Kg		35.0	37.0	38.8	40.7	42.6	44.5	46.4	48.3	50.2	52.1	54.0	55.9	57.8
Maximum Power (kW)	4P	1.5
Maximum Power (kW)	2P	2.2
Slowest Ratio	61.96
Minimum Speed Ratio	9.86

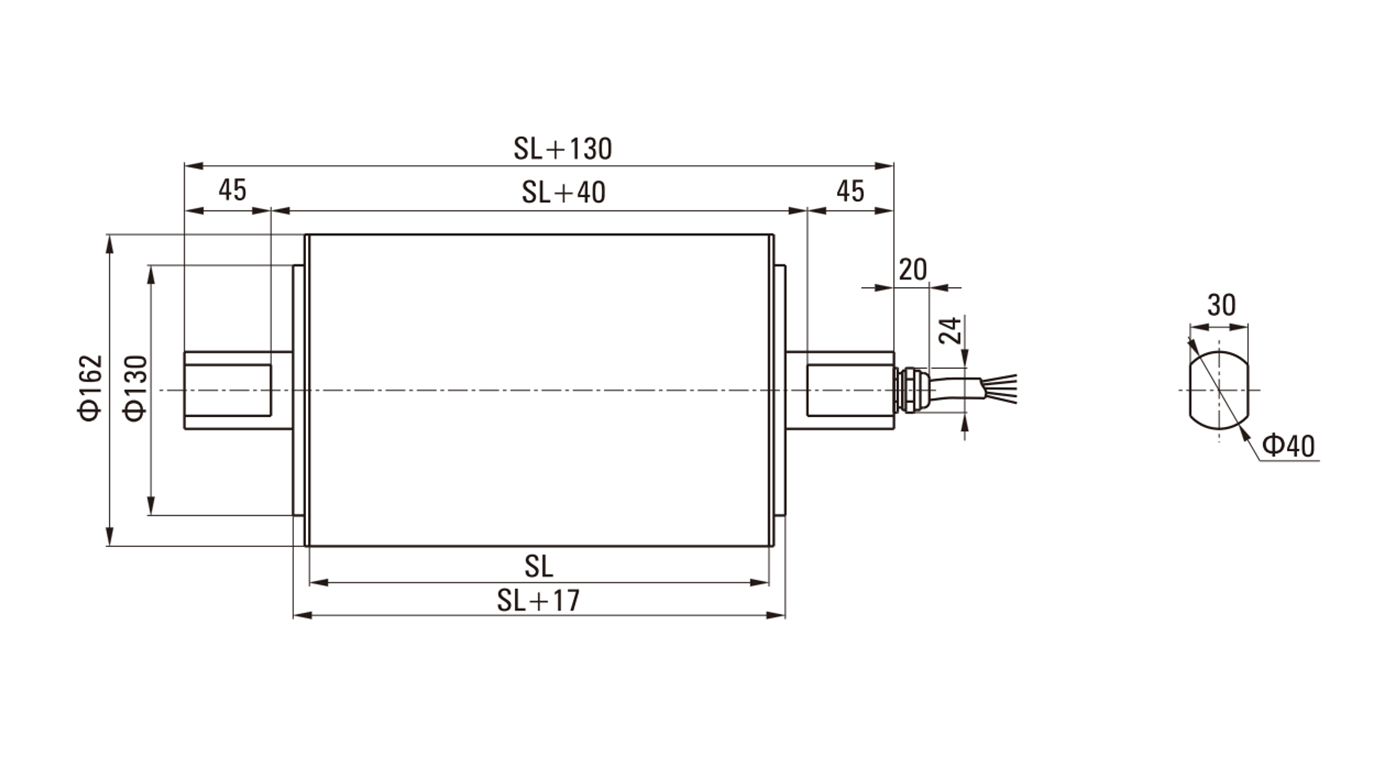

Type	ΦA mm	ΦB mm
165i tube	164	162
165i cylindrical tube	164	164
165i cylindrical tube + key	164	164

Component Description	Motor Roller
Roller shell
Carbon steel tube body	1
Carton steel straight drum	2
Stainless steel (standard 304) coronal tube body	2
Stainless steel (standard 304) straight drum	2
Special coronal and groove type	3
Front end cover
Cast aluminum cover	1
Nickel plated aluminum cover	2
Stainless steel (standard 304) end cover	2
Front and rare shaft
Carbon steel shaft	1
Stainless steel shaft	2
Motor
Single phase or three phase asynchronous motor	1
Voltage 1220V/50Hz or 3380V/50Hz	1
Global common voltage under 50Hz or 60Hz conditions	1
Thermal protector	1
Low temperature environment	2
Food grade oil & fat (FDA and USDA)	2

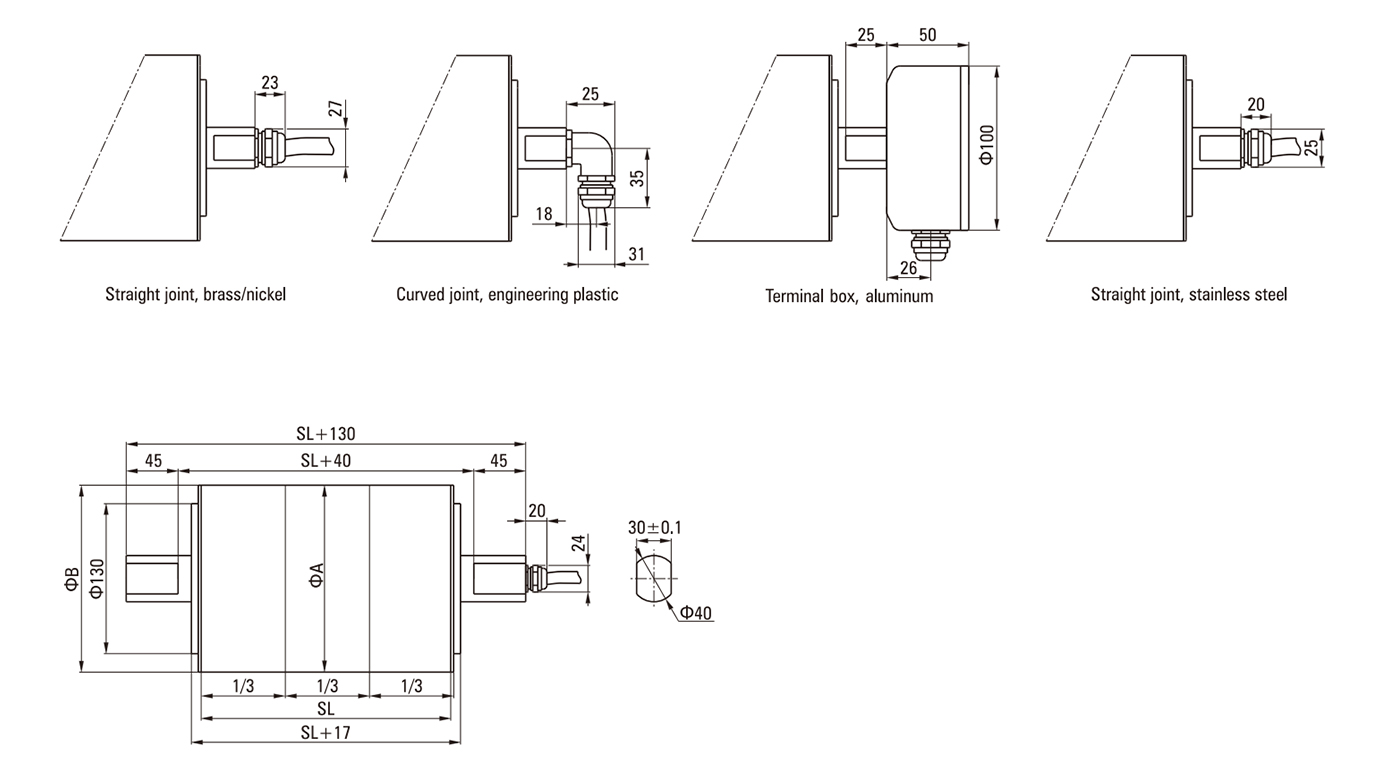

Electrical connection
Stainless steel elbow	3
Straight curved line	1
PVC cable	1
Low smoke halogen free cable	2
Cast terminal box	1
Nickel plated aluminum terminal box	1
Stainless steel terminal box	2
Other options
Electromagnetic stop device	2
Vertical or inclined installation	3
Connected converter	2

Note：
1-Standard option	2-Non-standard option	3-Restrained option，contact manufacturer if needed
