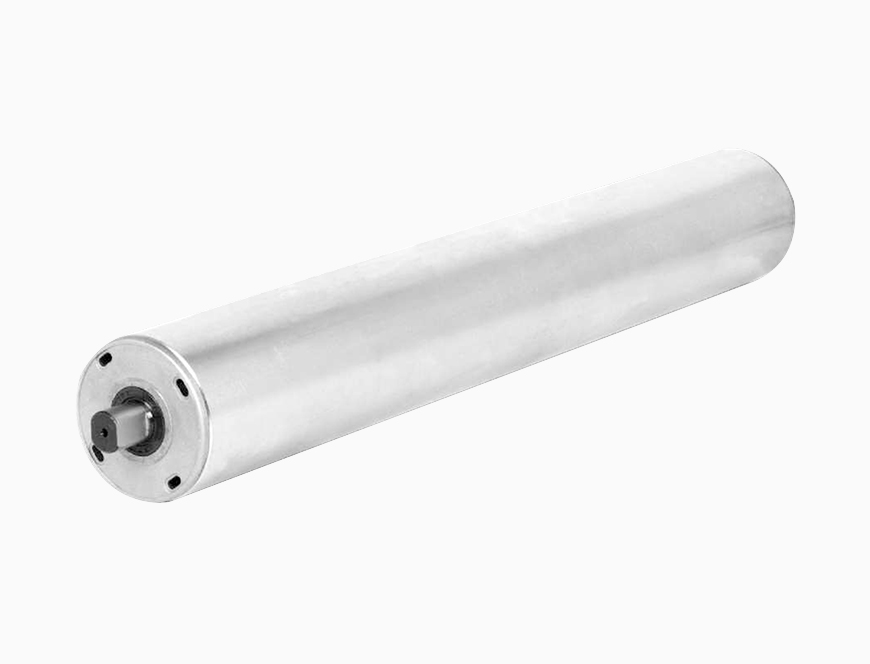

DM80 AC Motor Roller

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Product Information

This type of motor roller can be installed in limited space and meet the torque requirement.Using alloy steel grinded gears and planetary transmission structure，it is reliable，free of maintenance and oil-renewing，space-saving.It can be use in many fields：

●Supermarket cashier
●Security machine
●Packaging machinery
●Food processing industry
●Belt conveyor line
●Dynamic weighing apparatus

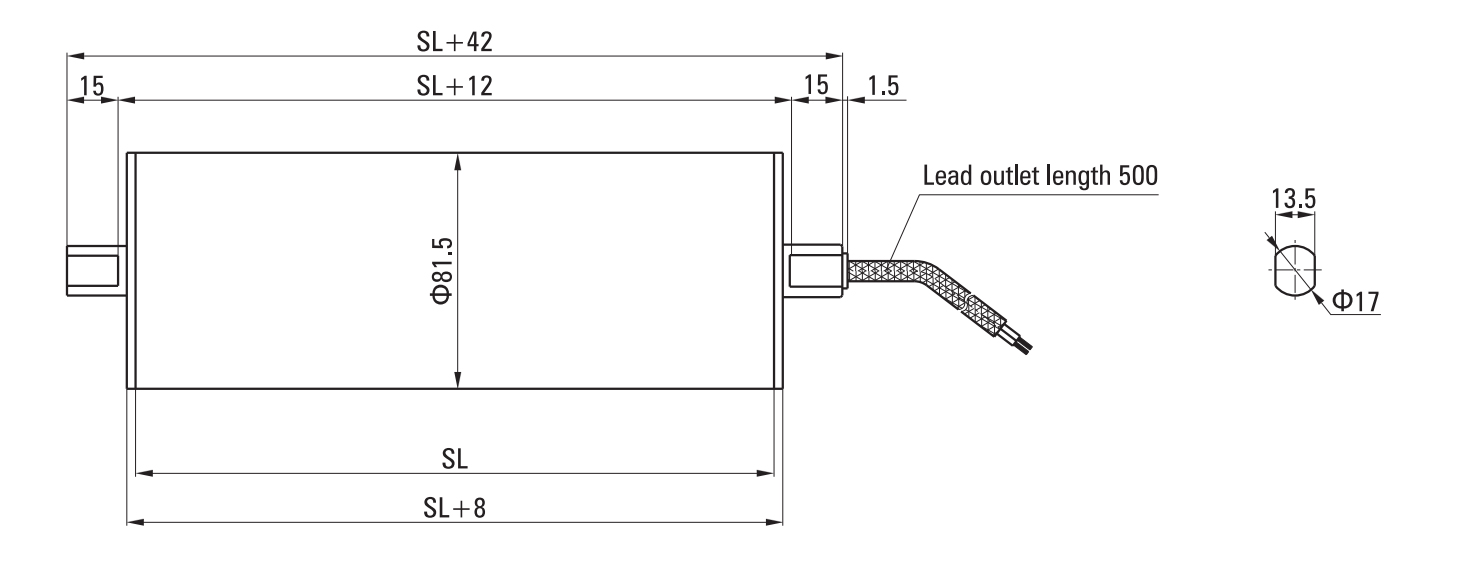

■ DM80 Characteristics Of Motor Roller

●Roller Shell

•Material of standard roller shell is mild steel, zinc plated, with ECO mark

•Food garde shell is 304 stainless steel

●Gear Drive

•High alloy steel grinding or secondary scraping

•Planetary gear transmission

●Gearbox

•Ensure the transmission with low noise, using the new polymer planetary gear and metal gear transmission

●Motor

•When 50Hz or 60Hz is used，it can be applied to all kinds of universal voltage

•Motor insulation class F

•All motor additional overheat protector

•Cable outlet type, cable length of 0.5M

●Seal Level

•Shaft end seal with skleton oil seal

•The seal protection level of the motor roller is IP54

●Oiling

•Before leaving factory, all products is filled will oil in standard amount, so no need of maintenance or oil-renew

●Other

•Horizontal installation

•Can be equipped with electromagnetic brake，but the shortest length of the cylinder wil be extended accordingly

•Belt speed and tube length can be produced according to customer requirements

•According to customer requirements, can produce a variety of non-standard motor roller

P_N kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.09	2	1	3.6500	175.370	684.9	1.10	27	350
			5.3600	119.422	466.4	1.60	40	350
			6.5500	97.725	381.7	1.90	49	350
			8.6300	74.171	289.7	2.60	64	350
		2	13.530	47.310	184.8	3.60	91	380
			18.920	33.832	132.1	5.10	127	380
			24.650	25.968	101.4	6.60	165	380
			28.050	22.820	89.10	7.50	188	380
			33.920	18.871	73.70	9.10	227	380
			44.690	14.323	55.90	12.0	299	380
			58.220	10.994	42.90	15.6	390	380
		3	67.080	9.542	37.30	16.2	405	400
			81.110	7.892	30.80	19.6	489	400
			91.360	7.006	27.40	22.0	551	400
			102.88	6.222	24.30	24.8	621	400
			118.98	5.380	21.00	28.7	718	400
			127.74	5.011	19.60	30.8	771	400
			145.36	4.404	17.20	35.1	877	400
			165.64	3.864	15.10	40.0	999	400
			191.56	3.342	13.10	46.2	1156	400
			231.61	2.764	10.80	55.9	1397	400
0.12	2	1	3.6500	175.370	684.9	1.40	36	350
			5.3600	119.422	466.4	2.10	53	350
			6.5500	97.725	381.7	2.60	65	350
			8.6300	74.171	289.7	3.40	86	350
		2	13.530	47.310	184.8	4.80	121	380
			18.920	33.832	132.1	6.80	169	380
			24.650	25.968	101.4	8.80	220	380
			28.050	22.820	89.10	10.0	250	380
			33.920	18.871	73.70	12.1	303	380
			44.690	14.323	55.90	16.0	399	380
			58.220	10.994	42.90	20.8	520	380
		3	67.080	9.542	37.30	21.6	540	400
			81.110	7.892	30.80	26.1	652	400
			91.360	7.006	27.40	29.4	735	400
			102.88	6.222	24.30	33.1	828	400
			118.98	5.380	21.00	38.3	957	400
			127.74	5.011	19.60	41.1	1028	400
			145.36	4.404	17.20	46.8	1169	400
			165.64	3.864	15.10	53.3	1332	400
			191.56	3.342	13.10	61.6	1541	400
			231.61	2.764	10.80	74.5	1863	400

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed .	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

P_N kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.09	2	1	3.6500	182.385	712.3	1.10	27	350
			5.3600	124.198	485.1	1.60	40	350
			6.5500	101.634	396.9	1.90	49	350
			8.6300	77.138	301.3	2.60	64	350
		2	13.530	49.202	192.2	3.60	91	380
			18.920	35.185	137.4	5.10	127	380
			24.650	27.006	105.5	6.60	165	380
			28.050	23.733	92.70	7.50	188	380
			33.920	19.626	76.70	9.10	227	380
			44.690	14.896	58.20	12.0	299	380
			58.220	11.434	44.70	15.6	390	380
		3	67.080	9.924	38.80	16.2	405	400
			81.110	8.207	32.10	19.6	489	400
			91.360	7.287	28.50	22.0	551	400
			102.88	6.471	25.30	24.8	621	400
			118.98	5.595	21.90	28.7	718	400
			127.74	5.211	20.40	30.8	771	400
			145.36	4.580	17.90	35.1	877	400
			165.64	4.019	15.70	40.0	999	400
			191.56	3.475	13.60	46.2	1156	400
			231.61	2.874	11.20	55.9	1397	400
0.15	2	1	3.6500	182.385	712.3	1.80	45	350
			5.3600	124.198	485.1	2.70	66	350
			6.5500	101.634	396.9	3.20	81	350
			8.6300	77.138	301.3	4.30	107	350
		2	13.530	49.202	192.2	6.00	151	380
			18.920	35.185	137.4	8.40	211	380
			24.650	27.006	105.5	11.0	275	380
			28.050	23.733	92.70	12.5	313	380
			33.920	19.626	76.70	15.1	378	380
			44.690	14.896	58.20	19.9	499	380
			58.220	11.434	44.70	26.0	650	380
		3	67.080	9.924	38.80	27.0	674	400
			81.110	8.207	32.10	32.6	816	400
			91.360	7.287	28.50	36.7	919	400
			102.88	6.471	25.30	41.4	1034	400
			118.98	5.595	21.90	47.9	1196	400
			127.74	5.211	20.40	51.4	1284	400
			145.36	4.580	17.90	58.5	1462	400
			165.64	4.019	15.70	66.6	1666	400
			191.56	3.475	13.60	77.0	1926	400
			231.61	2.874	11.20	93.2	2329	400

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

Component Description	Motor roller
Roller shell
Carton steel straight drum	1
Stainless steel (standard 304) straight drum	2
Front end cover
Cast aluminum cover	1
Nickel plated aluminum cover	2
Stainless steel (standard 304) end cover	2
Front and rare shaft
Carbon steel shaft	1
Stainless steel shaft	2
Motor
Single phase or three phase asynchronous motor	1
Voltage 1 220V/50Hz or 3380V/50Hz	1
Global common voltage under 50Hz or 60Hz conditions	1
Thermal protector	1
Oil for room temperature	2

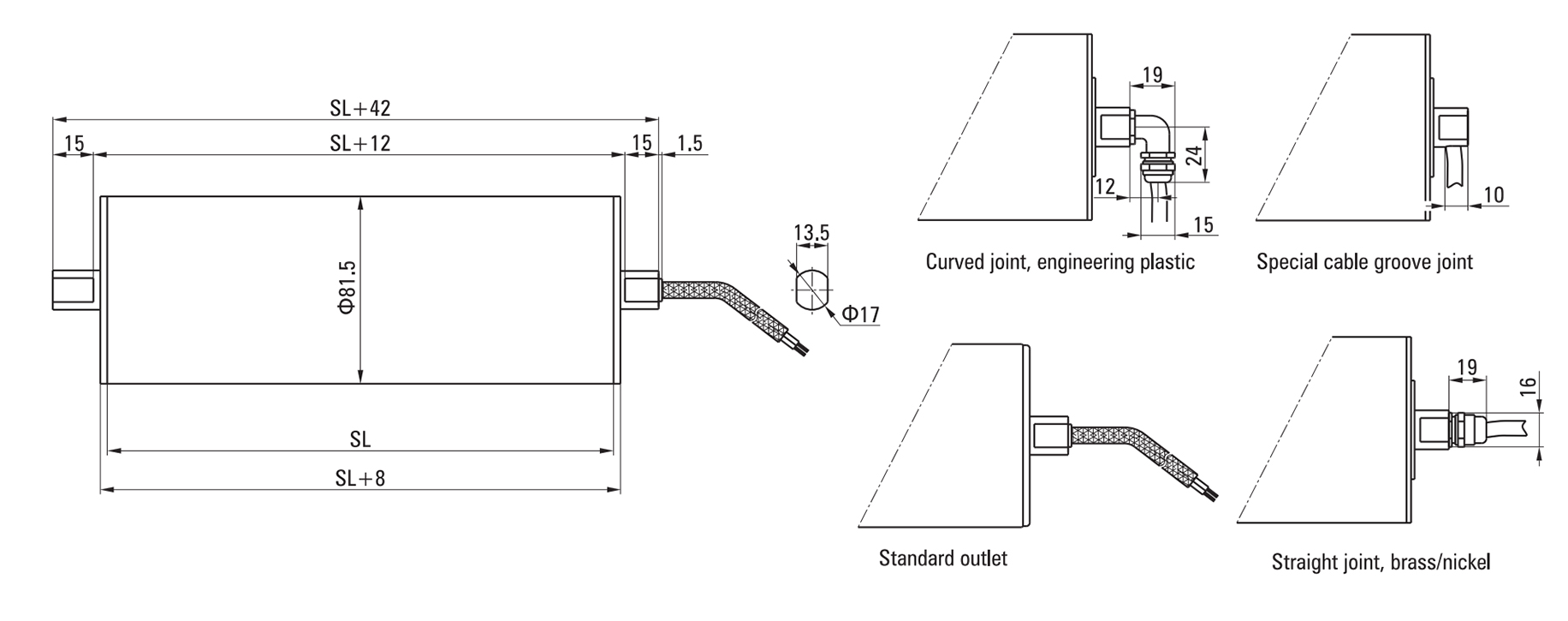

Electrical connection
Engineering plastic bending	3
Straight curved line	1
PVC cable	1
Low smoke halogen free cable	2
Other options
Electromagnetic stop device	2
Can be installed in different directions	3
Connected converter	2

Note：
1-Standard option	2-Non-standard option	3-Restrained option，contact manufacturer if needed

Related Products

25W-80mm DC Spiral Bevel Right Angle Brush Gear Motor

25W-80mm DC Worm Gear Right Angle Brush Gear Motor

40W-80mm DC Spiral Bevel Right Angle Brush Gear Motor

40W-80mm DC Worm Gear Right Angle Brush Gear Motor

40W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

40W-90mm DC Worm Gear Right Angle Brush Gear Motor

60W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

60W-90mm DC Worm Gear Right Angle Brush Gear Motor

90W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

90W-90mm DC Worm Gear Right Angle Brush Gear Motor
