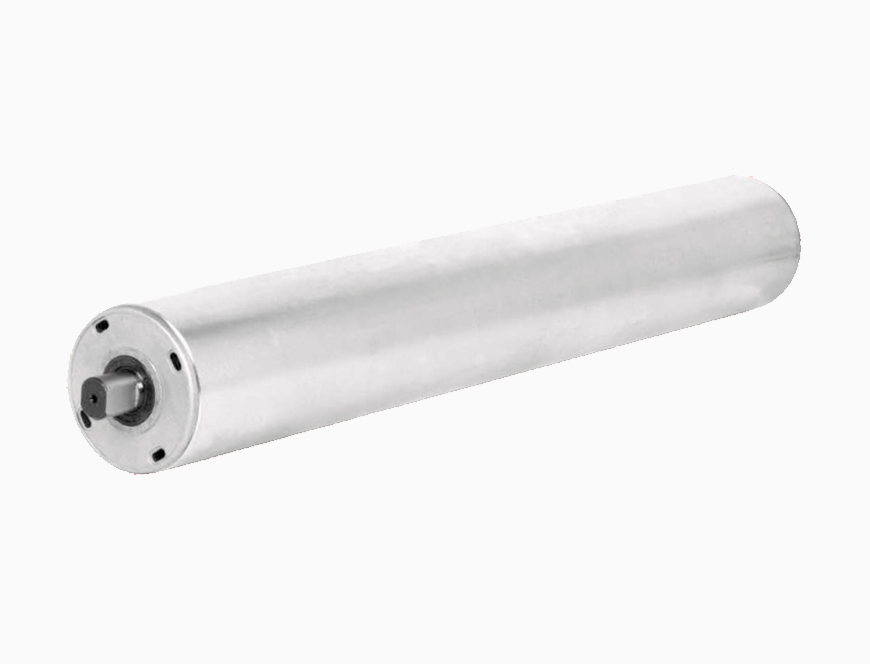

60W BL60 Brushless DC Motor Roller

60W BL60 Brushless DC Motor Roller


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Product Information

This type of motor roller can be installed in limited space and meet the torque requirement.Using alloy steel grinded gears and planetary transmission structure，it is reliable，free of maintenance and oil-renewing，space-saving. It can be use in many fields：

●Supermarket cashier
●Packaging machinery
●Belt conveyor line

■ BL60 Characteristics Of Motor Roller

●Roller Shell

•Material of standard roller shell is mild steel

•Food garde shell is 304 stainless steel

•Standard cylinder rolling mill gear slip flower - gear

•High alloy steel precision, ensures low noise during transmission

•Planetary gear transmission





■ Basic Characteristics Of Motor

●External diameter 60 drum motor (DC Power Supply When Applied To 24VDC/36VDC/48VDC)

Rated power (continuous)

W

90

Rated speed

r/min

3000

Rated torque

N.m

0.286

Instantaneous maximum torque

N.m

0.570

Speed control range

RPM

200~3000

Speed control range

On load

Below ±1%： condition 0~rated torque, rated speed, rated voltage, room tempenature

On voltage

Below± 1%: condition rated voltage  ±10%, rated speed, rated load, room temperature

On temperature

Below±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed

Power input

Rated voltage

 V

Single phase 110V

 Single phase 220V 24VDC(Optional 36VDC/48VDC)

Voltage tolerance range

±10%

Frequency

 Hz

50/60

/

Fraqucy tolerance range

±5%

/

Rated input current

 A

2.3

1.2

5.3

Instantaneous maximum input current

 A

3.5

1.75

8.0



Product Description

Rated Power P
W

 Gear Box Series

Reduction Ratio i

Max Speed V
m/min

Rated Speed n
RPM

Rated Torque T
Nm

Traction F
N

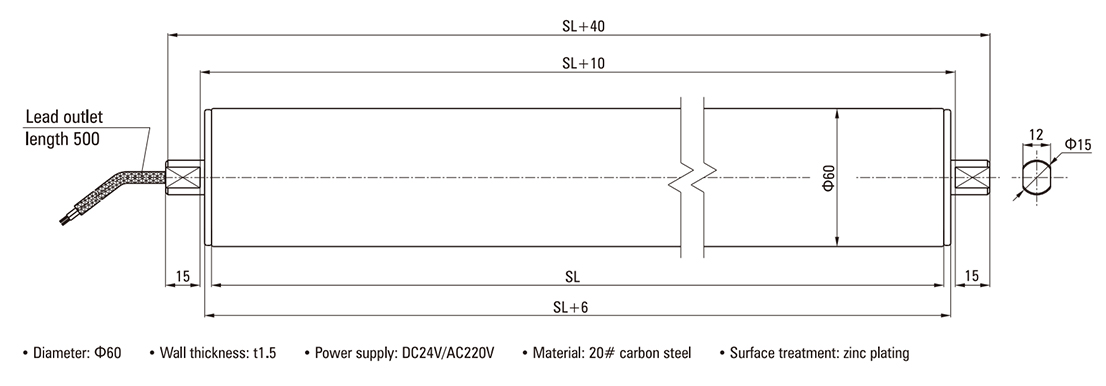

Length SL
mm

90W


One Stage

3.65

155

821.9

0.940

31.33

≥270~1000

5.36

105

559.7

1.380

46.00

6.55

86.0

458.0

1.690

56.33

8.63

65.0

347.6

2.230

74.33

Two Stage

13.53

42.0

221.7

3.140

104.7

≥290~1000

18.92

30.0

158.6

4.390

146.3

24.65

23.0

121.7

5.720

190.7

28.05

20.0

106.9

6.510

217.0

33.92

17.0

88.40

7.870

262.3

44.69

13.0

67.10

10.37

345.7

58.22

10.0

51.50

12.00

400.0

Three Stage

67.08

8.00

44.70

14.03

467.7

≥305~1000

81.11

7.00

37.00

16.96

565.3

91.36

6.00

32.80

19.11

637.0

102.88

5.50

29.20

21.52

717.3

118.98

5.00

25.20

24.88

829.3

127.74

4.40

23.50

25.00

833.3

145.36

4.00

20.60

25.00

833.3

165.64

3.40

18.10

25.00

833.3

191.56

3.00

15.70

25.00

833.3

231.61

2.40

12.90

25.00

833.3

301.68

2.00

9.900

25.00

833.3

392.98

1.44

7.600

25.00

833.3


●This parameter is used for motor speed range in 200~ 300RPM

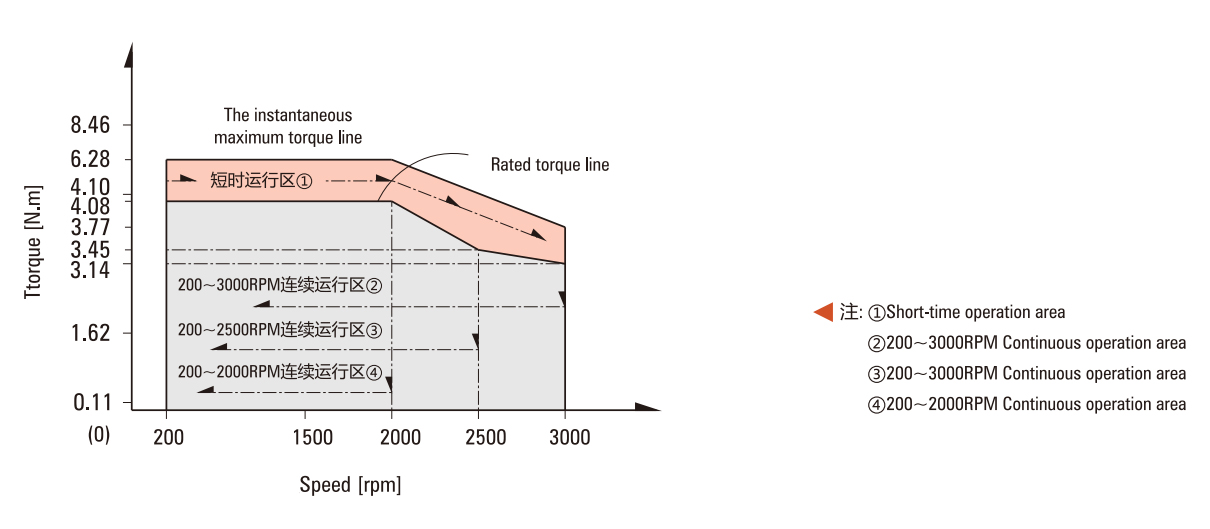

Take the two stage of the reduction, the reduction ratio of 13.53K for the roller as an example.

Blue(thick)

Yellow(thick)

Green(thick)

Red(thin)

Yellow(thin)

Green(thin)

Blue(thin)

Black(thin)

W

U

V

Vcc+5V

Hu

Hv

Hw

GND
