We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

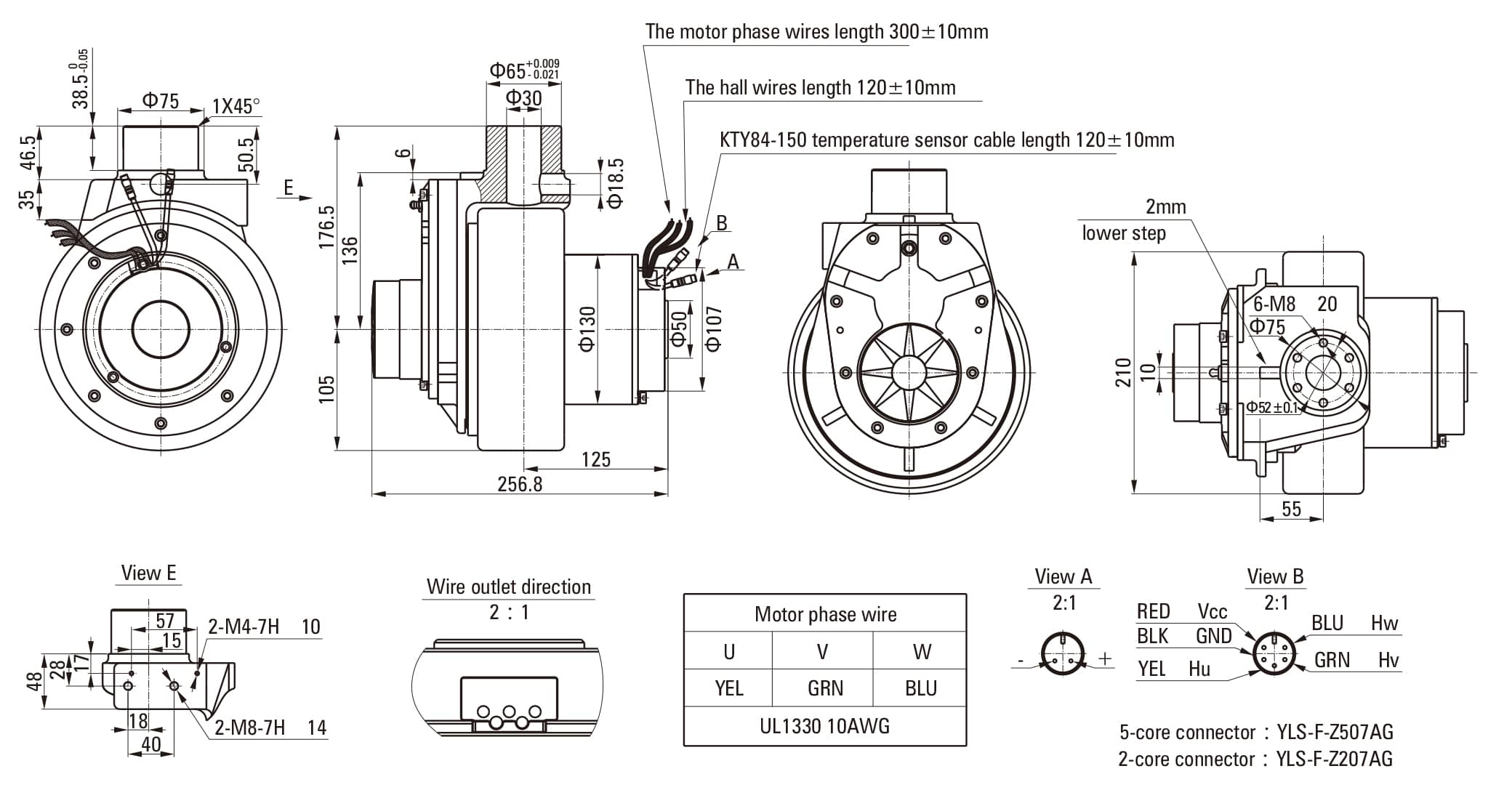

| Model | Rated voltage | Rated power | Rated current | Rated speed | Rated torque | Noload current | Noload speed | Work duty | Insulation resistance | Life | Electrical strength | Insulation class | Protection grade | Reducer model | Reduction ratio | Brake voltage | Brake torque | Ambient temperature | Noise |
| Z130BLD1000-48A1-30S | 48VDC | 1000W | 28A±10% | 3000rpm±10% | 3.18N.m | ≤6A | 3800rpm±10% | S2(60min) | >20MΩ | 5000h | 660V/S | B | IP44 | JP-210-002 | 24.685K/17K | 48VDC | 8N.m | -10℃~+40℃ | <65dB(A)(L=100cm) |
1.This product complies with GB/T21418-2008 permanent magnet brushless motor system general technical conditions (partial conditions);
2.The nameplate is attached to the surface of the motor;
3.The assembly is clean, the motor runs smoothly, the sound is harmonious, and no obvious abnormal sound;
4.The screws of the motor back cover are stainless steel screws, and the other exposed screws are dacromet screws.
Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful DC Brushless Drive Wheel with 210mm Diameter Wheel manufacturers and DC Brushless Drive Wheel with 210mm Diameter Wheel suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our DC Brushless Drive Wheel with 210mm Diameter Wheel and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.
No. of Employees: 1,500 employees
Mission: Zhongda realizes the infinite possibilities in automation applications.
Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.
Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.
Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
